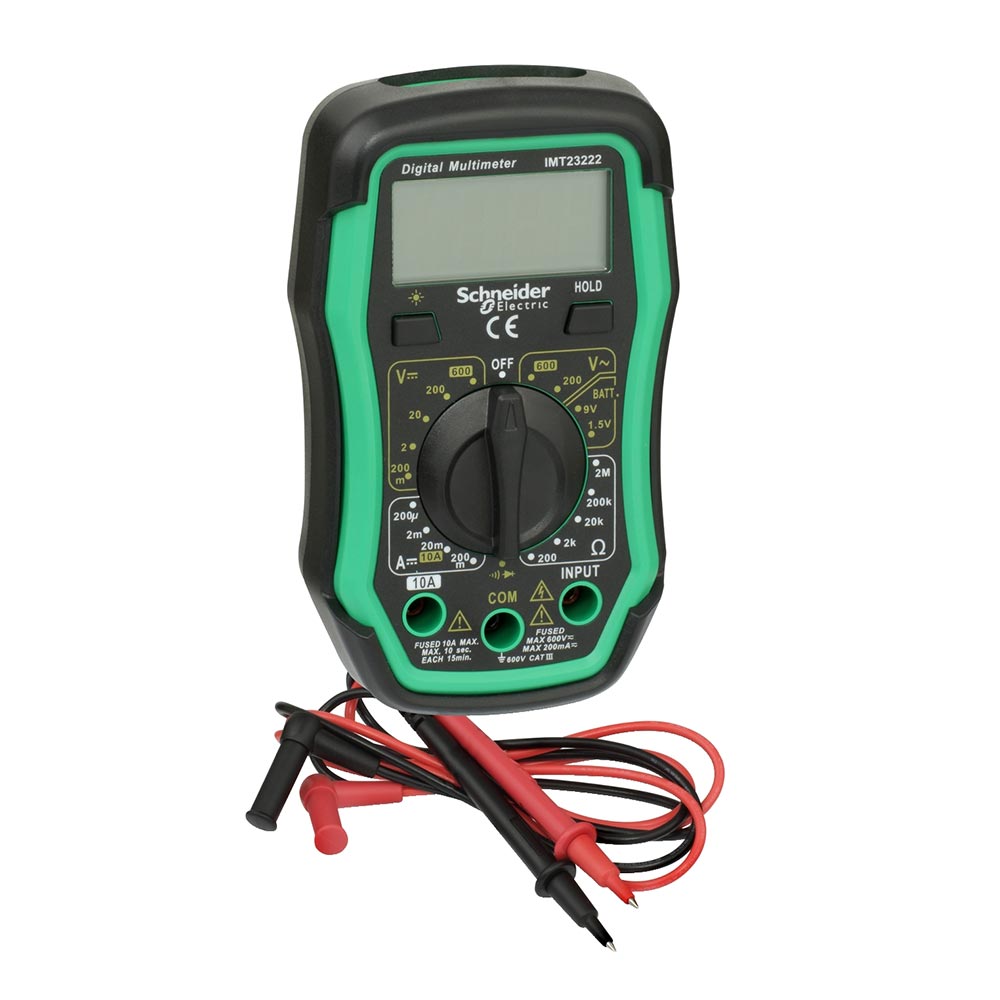

Schneider Electric Thorsman Digital Multimeter 600V
Adding product to your cart
Product Description
Product Features
- A high specification digital multimeter, designed to measure voltage, current and resistance
- Equipped with a backlit screen and a data hold function
- Handsfree operations
- Data hold function
- Measurement Category III 600 V
- Available in multiple user Languages
Safety Features
- Is Mercury Free
- Conformity Standard: IEC 61010
Technical Specifications
| Colour: |
Green and Black |
| Protection Type: |
Fuse |
| Measurement accuracy: |
- Voltage DC: 200mV, 2V, 20V, 200V or 600 V
- Voltage AC: 200V or 600 V
- Current DC: 200µA, 2mA, 20mA, 200mA or 10 A
- Resistance: 200 Ohm, 2 kOhm, 20 kOhm, 200 kOhm or 2 Mohm
|
| Battery Voltage: |
9V |
| Display: |
Backlit monochrome STN LCD with a visual display for low battery |
| Height: |
150mm |
| Width: |
90mm |
| Length: |
40mm |
| Weight: |
290g with battery |
