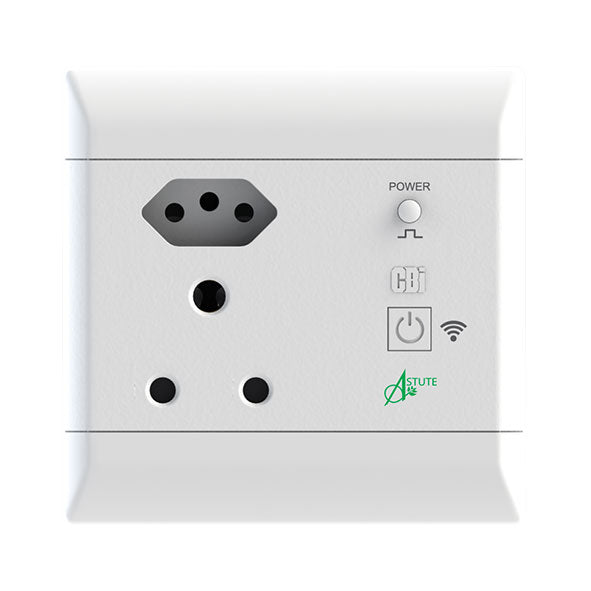

CBi Astute Smart Plug Socket 4x4
SKU: ASP
Adding product to your cart
The Astute Smart Plug is an energy monitoring, scheduling and control switch with load management and automation capability. The CBI Home App enables the user to configure the ASP to react to current, voltage, time, power and many other variables or a combination thereof. The ASP can be used to remotely control appliances, lights, etc.
Product Video
VIDEO Product Features
Wi-Fi enabled (2.4 GHz only)
Fits standard wall boxes
Energy monitoring
Energy control
Application controlled (CBI Home App)
Custom automation and custom scenarios
Multiple ON / OFF programs
Service life: 20 000 operations at full load
Manual ON / OFF switch (Power Button)
Scheduling function - day / week / hour / minute
Return to last status options
No hub required
Requires 2.4GHz Wi-Fi with internet connection
Requires a smartphone or tablet
Application
Automation and IoT
Residential - Appliances / Lights
Commercial - Appliances / Lights
Light Industrial
Home / office automation
And more
Lights
Safety Features
Technical Specifications
Colour:
White
Finish:
Gloss
Material:
Plastic
Mounting Type:
Surface or Wall Mount
Socket Type:
RSA (164-1) | Slimline (164-2)
Switch Type:
Isolator and Power Switches on the unit
Number of Switches:
2 x Switches
Number of Sockets:
2 x Sockets
Wi-Fi Frequency:
2.4 GHz
Wireless Frequency Range:
2.4 GHz Wi-Fi
Time Range:
Week / Day / Minute
Current:
16A
Voltage:
230V AC
Frequency:
50 Hz
Phase:
Single Phase
Rated Impulse Voltage:
2.5kV
Height:
125mm
Width:
125mm
Depth:
26mm
Size:
4 x 4
Cable / Wire Size (sq.):
6mm²
Contact Life:
20000 Cycles
Operating Temperature:
-20°C to +55°C
IP Rating:
IP20 (indoor use, no water protection)
Technical Documents
