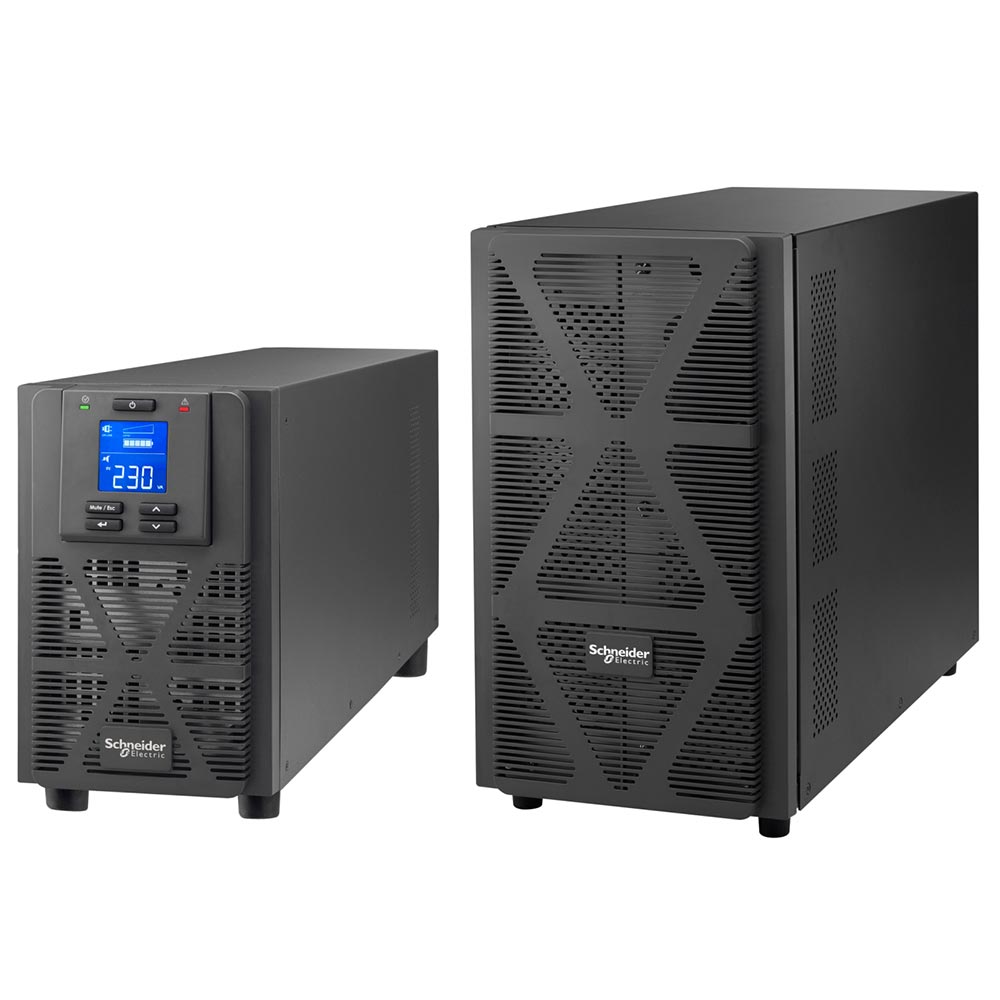

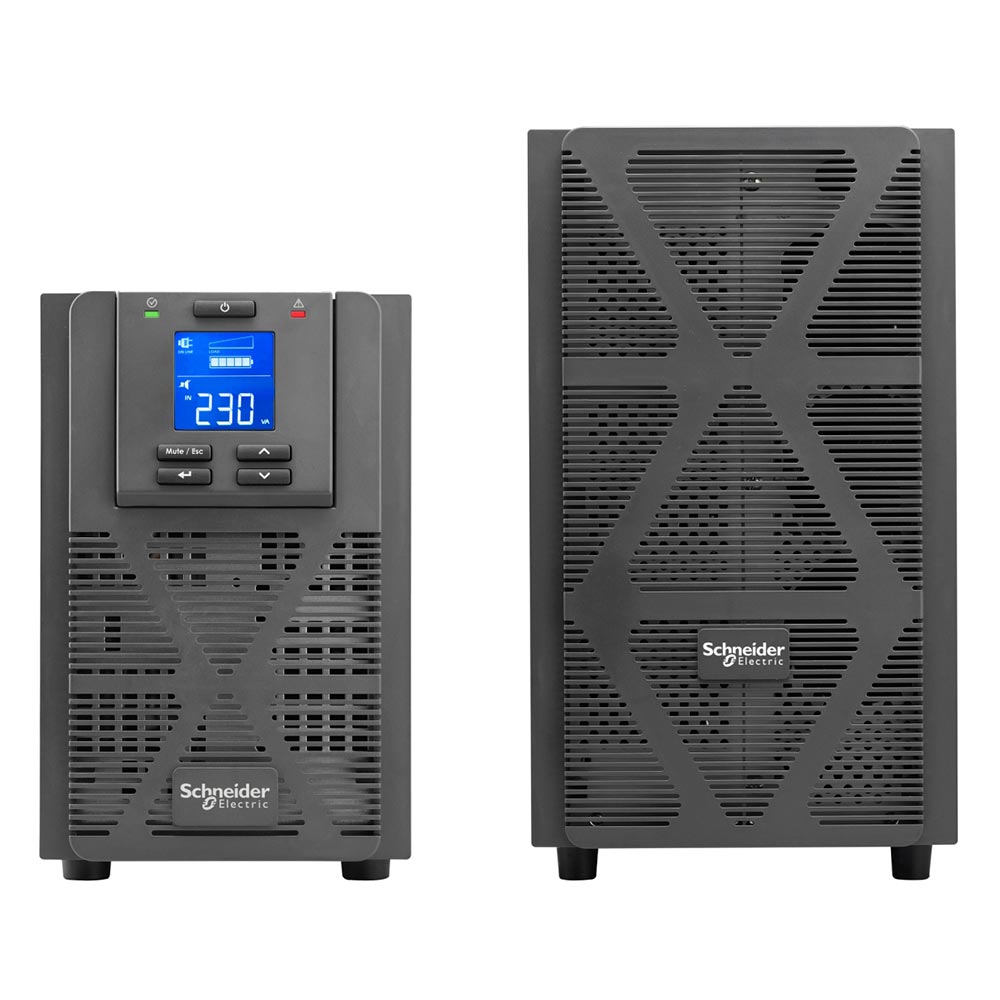

Schneider Easy UPS 1Ph on-line SRVS ext. Runtime 3000 VA 230 V with external battery pack
        SKU:
        SRVS3KIL




      Adding product to your cart









Easy UPS 1 Ph On-Line provides essential power protection for unstable power conditions, ensuring consistent and reliable connectivity at the most critical moments
  Product Features
- Ideal for small to medium businesses
- Operates in a vertical mounting position
- Is not rack-mountable
- Uses a 72V Lead-Acid Battery
- Multifunction LCD status and control console
- Houses an alarm notifying when on battery and a distinctive low battery alarm, or a continuous tone for an overload alarm
- Internal bypass (automatic and manual)
- 88% Efficiency at full load
- Has 1 free slot for Communications & Management purposes
- This is a Double conversion online UPS
- Surge energy rate of 600J
- 2 Years Repair or Replace
What's in the Box
- Basic UPS signalling RS-232 cable
- CD with software
- Country-specific detachable power cord
- 1 x DC cable
- User manual
- USB cable
Safety Features
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
- CE Product Certification
- Conformance Standards: EN/IEC 62040-1 and EN/IEC 62040-2

Technical Specifications

| Colour: | Black |
| Finish: | Semi-Gloss |

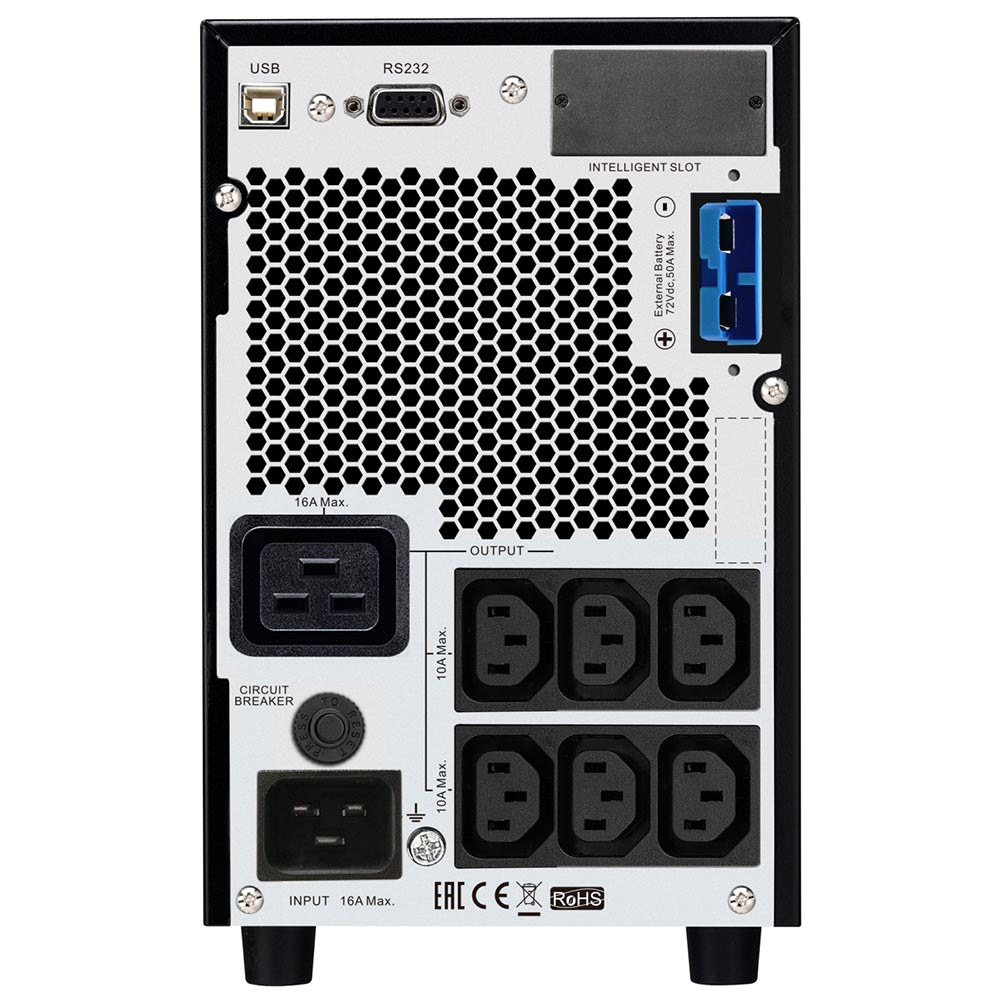

| Socket Type: | 6 x IEC 60320 C13 and 1 x IEC 60320 C19 |
| Plug Type: | IEC 60320 C20 |
| Number of Sockets: | 7 |
| Battery Type: | Lead-Acid |
| Battery Voltage: | 72V |
| Battery Charge Time: | 4 hours |
| Battery Life: | 3 - 5 years |
| Battery Charge Power: | 234W rated |
| Display and Signals: | Multifunction LCD status and control console |
| Waveform: | Sine Wave |
| Noise Level: | 50 dBA |
| Rated Power: | 2400W / 3000VA |
| Input Voltage: | 230V |
| Output Voltage: | 230V |
| Input Voltage Range: | 220V - 240V |
| Output Frequency: | 50/60 Hz +/- 3 Hz sync to mains |
| Height: | 336mm |
| Width: | 425mm |
| Length: | 425mm |
| Cable Length: | 1520mm |
| Operating Temperature: | 0 to 40 °C |
| IP Rating: | IP20 |
| Weight: | 45.9kg |
 Technical Documents
