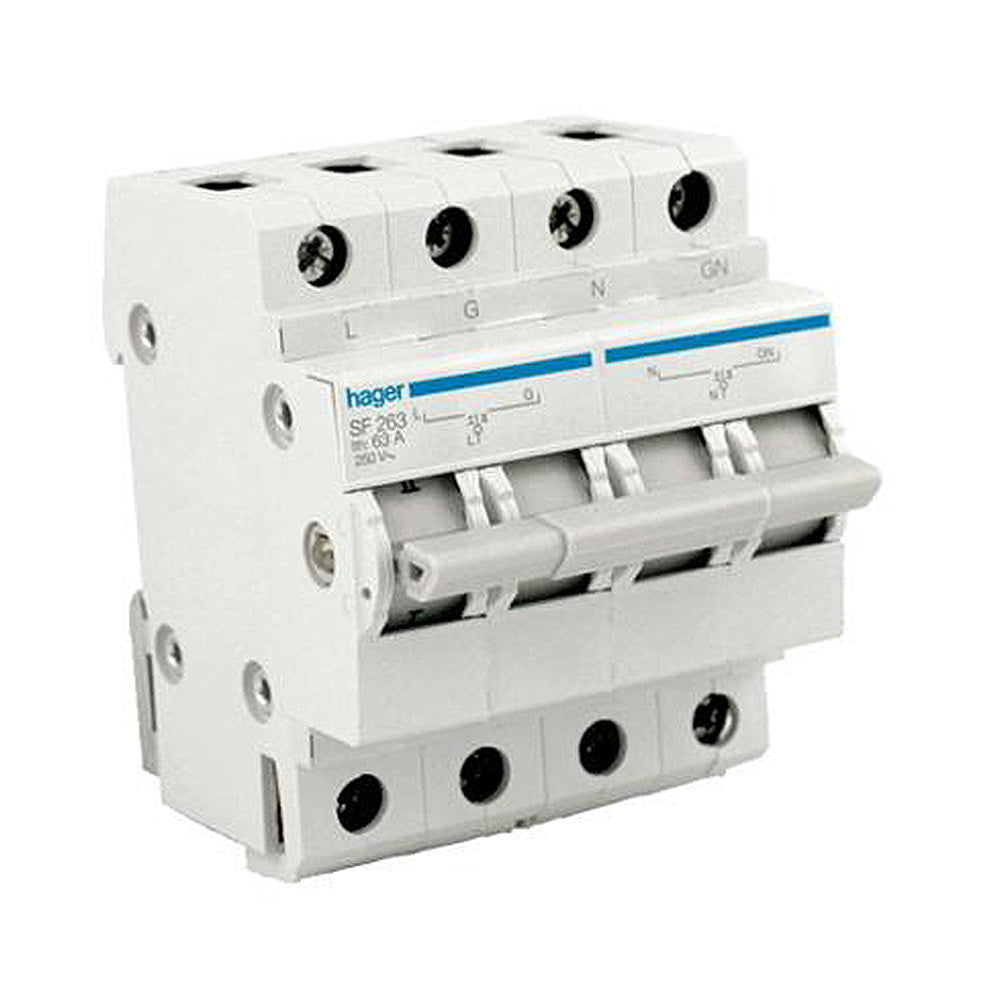

Hager Changeover Switch 2P 63A
SKU:
SF263
Adding product to your cart
Product Features
- Changeover with zero position
- Connection Cross-Section Flexible Cable: 16mmA2
- Connection Cross-Section Rigid Cable: 25mmA2
- Switching: On-Off-On
- This modular changeover switch is not a disconnector. The isolation must be ensured with an appropriate device. The changeover incoming must be protected against short circuit with an appropriate MCB 63A - 4.5kA - Curve C
Technical Specifications
| Colour: |
White |
| Material: |
Plastic |
| Mounting Type: |
DIN Rail |
| Connection Type: |
With Screw |
| Poles: |
2 |
| Current: |
63A |
| Voltage: |
230V |
| Height: |
90mm |
| Width: |
71.5mm |
| Depth: |
72mm |
| Operating Temperature: |
-20 to 50 °C |
| IP Rating: |
IP20 (indoor use, no water protection) |
