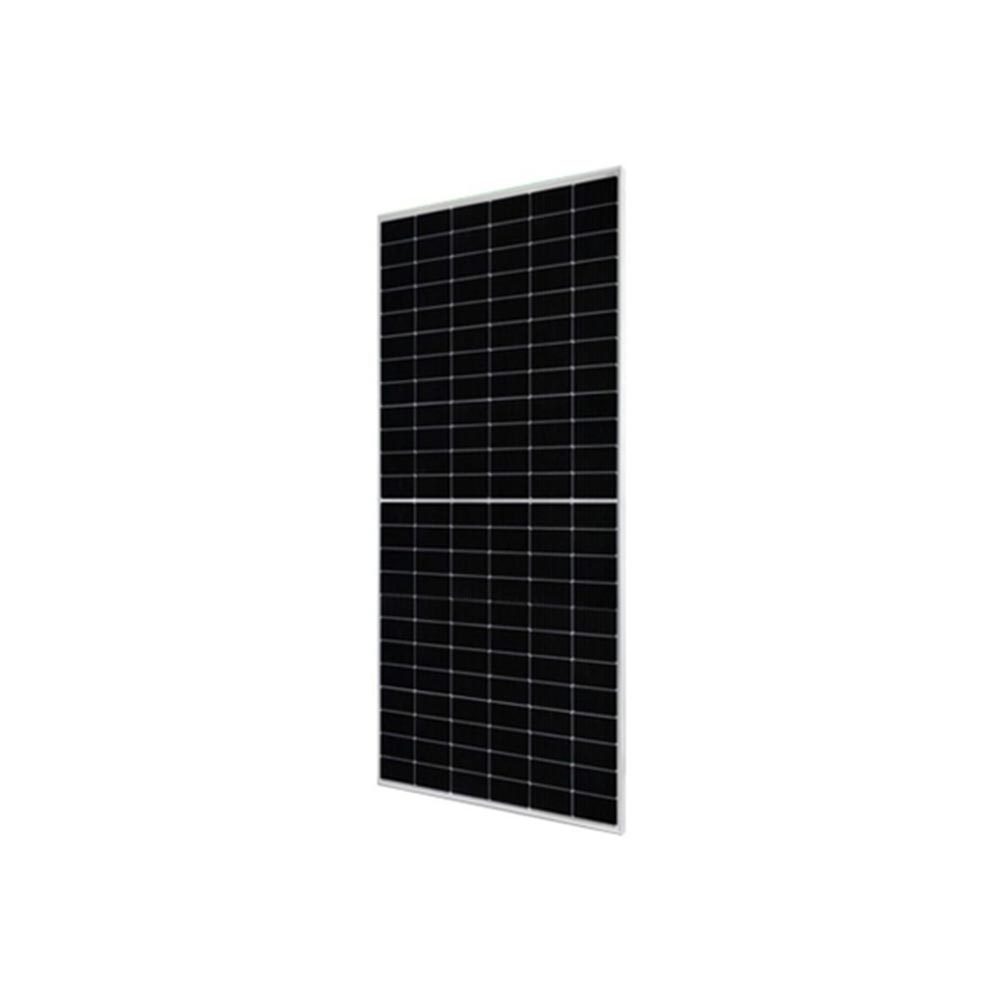

JA Solar 550w Mono PV Module Multi-Busbar Half-Cell Black

JA Solar 550w Mono PV Module Multi-Busbar Half-Cell Black
Regular price
R 3,399.00
Sale price
R 3,399.00
Regular price
Check Availability
Unit price
FREE delivery in 7 to 14 business days

When will I get my order?

Estimated Delivery Times

Main Centers




Cape Town

Port Elizabeth


East London





Richards Bay

1 - 3 Business Days
Regional Areas 2 - 5 Business Days
Outlying Areas 2 - 7 Business Days
International Please contact out sales department
Stocked items will be dispatched on the same day if payment is made before 13:00pm.

Product Description

Assembled with 11BB PERC cells, the half-cell configuration of the modules offers the advantages of high power output, better temperature-dependant performance, reduced shading effect on the energy generation, lower risk of hot spot, as well as enhanced tolerance for mechanical loading

Product Features
  • Higher output power
  • Lower LCOE (Levelised Cost of Energy) meaning a lower lifetime cost due to the amount of energy produced
  • Less shading and lower resistive loss
  • Better mechanical loading tolerance
  • The superior warranty offering 0.55% Annual Degradation Over 25 Years
  • Important: All solar products and power systems and their components must be installed by appropriately qualified Installers to make sure that the products are safely installed and meet local regulations and compliance
  • Country of Origin: China/Vietnam
    • 12 Year Product Warranty
      25 Year Linear Power Output Warranty

Safety Features
  • Comprehensive Certificates:
    • IEC 61215, IEC 61730
    • ISO 9001: 2015 Quality management systems
    • ISO 14001: 2015 Environmental management systems
    • ISO 45001: 2018 Occupational Health and safety management systems

Technical Specifications
Cell Type: Mono
Number of Cells: 144 (6x24)
Connection Type: Genuine MC4-EVO
Load (Max.): Static - 3600Pa, 1.5
Load (Min.): Static - 1600Pa, 1.5
Series Fuse (Max.): 25A
System Voltage (Max.): 1500V DC (IEC)
PV Junction Box: IP68, 3 diodes
Normal Operating Cell Temperature (NOCT): 45 ± 2°C
Width: 1134±2mm
Length: 2279±2mm
Depth: 35±1mm
Cable Length: Including Connector:
  • Portrait: 300mm(+)/400mm(-)
  • Landscape: 1300mm(+)/1300mm(-)
  • Cable / Wire Size (sq.): 4mm² (IEC), 12AWG (UL)
    Operating Temperature: (-)40°C ~ +85°C
    Fire Protection: UL Type 1
    Safety Class: II
    Weight: 28.6kg±3%

    Technical Documents
    Technical Document: Download
