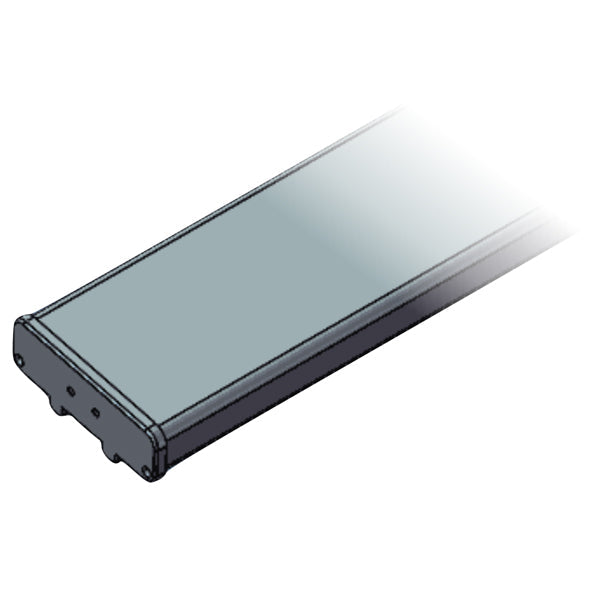

OrbitX Puck LED Linear Light 116W 12000lm Daylight 8ft
SKU:
OXPU2400120T
Adding product to your cart
Product Features
- OrbitX Direct Drive Technology Onboard
- Thin end cap line (<3mm) on light surface with a seamless look when mounted end-to-end
- Type A compliant (mimics sunlight): CRI 83/GAI 96
- No Wi-fi, Barcode Scanner, Radio Frequency Interference
- Highly robust: UL-94 VO compliant (no flaming droplets) and food safe
- 60 000h lifespan (L70B05)
- 6 Year operational Guarantee, 3 Year light output Guarantee
Technical Specifications
| Colour: |
White |
| Finish: |
Semi-Gloss |
| Material: |
Polycarbonate |
| Diffuser Colour: |
Opal |
| Diffuser Material: |
Polycarbonate |
| Mounting Type: |
Surface Mount |
| Shape: |
Linear |
| Style: |
Modern |
| Lamp Base: |
N/A |
| Lamp Technology: |
LED |
| Number of Bulbs: |
Integrated LEDs |
| Colour Temperature: |
5000K |
| Colour Spectrum: |
Daylight |
| Lumen Output: |
12000lm |
| Lumen per Watt: |
103.45lm/W |
| Colour Rendering Index (CRI): |
83 CRI |
| Beam Angle: |
160° |
| Lamp Life Hours: |
60000hrs |
| Power Factor: |
>0.98s |
| Wattage: |
116W |
| Voltage: |
220-240 V AC |
| Height: |
20mm |
| Width: |
50mm |
| Length: |
2400mm |
| Length (ft): |
8ft |
