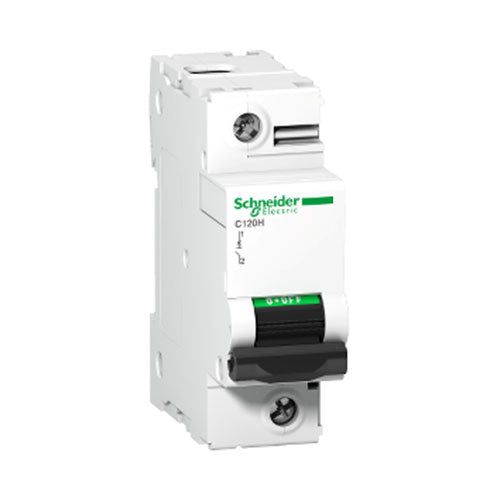

Schneider Electric Acti 9 C120H DIN Mini Circuit Breaker C-Curve 1P
Adding product to your cart
Product Description
Product Features
- C120H circuit breakers are multi-standard circuit breakers which combine the following functions;
- Circuit protection against short-circuit currents
- Circuit protection against overload currents
- Suitable for industrial isolation according to IEC/EN 60947-2
- Fault tripping and indication by adding auxiliaries
- Available in 80A or 100A
Technical Specifications
| Colour: |
White |
| Material: |
Plastic |
| Handle Colour: |
Black |
| Mounting Type: |
DIN Rail |
| Poles: |
1 |
| Curve: |
C-Curve |
| Trip Unit Technology: |
Thermal Magnetic |
| Current: |
Available in 80A or 100A |
| kA Rating: |
15kA |
| Voltage: |
230 to 400V |
| Height: |
81mm |
| Width: |
27mm |
| Depth: |
73mm |
| Weight: |
205g |
