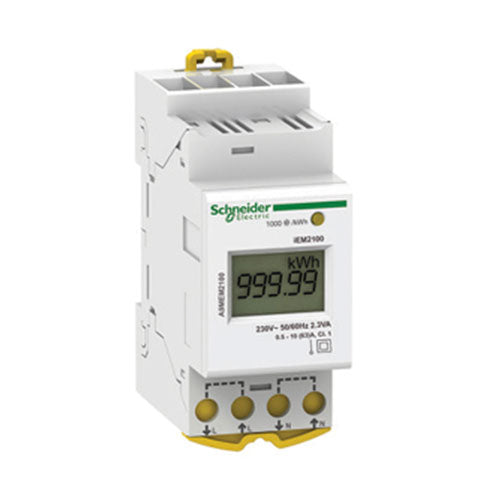

Schneider Electric Acti 9 iEM2100 Rail Mount Energy Meter 63A


Schneider Electric Acti 9 iEM2100 Rail Mount Energy Meter 63A
Regular price
R 4,348.00
Sale price
R 4,348.00
Regular price
Check Availability
Unit price
per
Schneider Electric
A9MEM2100
Technical Specifications


Product Description

Product Features
  • iEM2100 single-phase kilowatt-hour meter
  • The Acti 9 iEM2100 Series Energy Meters is a competitive range of DIN rail-mounted energy meters ideal for sub-billing and cost allocation applications
  • Easy to integrate electrical distribution measurements into customer's energy management systems
  • Innovative design makes the meters smart and simple
  • Cost management applications
  • Bill verification
  • Network management applications
  • Basic electrical parameters like current, voltage and power
  • Self powered meters
  • Compliance with IEC 62053-21, IEC 62053-23, EN 50470-3
  • Compact, 1 or 2 module width
  • Anti-tamper security features ensure the security of your data
  • Single phase circuit plus neutral
  • IP40 front panel and IP20 casing
  • MID compliant providing certified accuracy and data security

Technical Specifications
Colour: White
Mounting Type: DIN rail mount
Measurement accuracy: Class 1/0.5s
Current: 63A direct connected
Voltage: 184 to 276V AC
Frequency: 50/60hZ
Height: 81mm
Width: 36mm
Depth: 65mm
Weight: 135g
Technical Documents
Technical Document: Download
