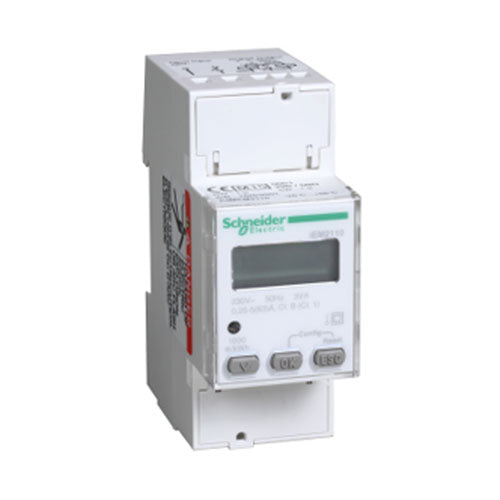

Schneider Electric Acti 9 iEM2110 Rail Mount Energy Meter 63A with two tariffs
Adding product to your cart
Product Description
Product Features
- iEM2110 single-phase kilowatt-hour meter, multi tariffs with partial counter and current and voltage, power measurement, pulse outputs, MID certified
- The Acti 9 iEM2110 Series Energy Meters is a competitive range of DIN rail-mounted energy meters ideal for sub-billing and cost allocation applications
- Easy to integrate electrical distribution measurements into customer's energy management systems
- Innovative design makes the meters smart and simple
- Cost management applications
- Bill verification
- Network management applications
- Basic electrical parameters like current, voltage and power
- Self powered meters
- Compliance with IEC 62053-21, IEC 62053-23, EN 50470-3
- Compact, 1 or 2 module width
- Anti-tamper security features ensure the security of your data
- Single phase circuit plus neutral
- IP40 front panel and IP20 casing
- MID compliant providing certified accuracy and data security
Technical Specifications
Colour: |
White |
Mounting Type: |
DIN rail mount |
Measurement accuracy: |
Class 1/0.5s |
Current: |
63A direct connected |
Voltage: |
92 to 276V AC |
Frequency: |
50/60hZ |
Height: |
90mm |
Width: |
36mm |
Depth: |
64mm |
Weight: |
175g |
Technical Documents
