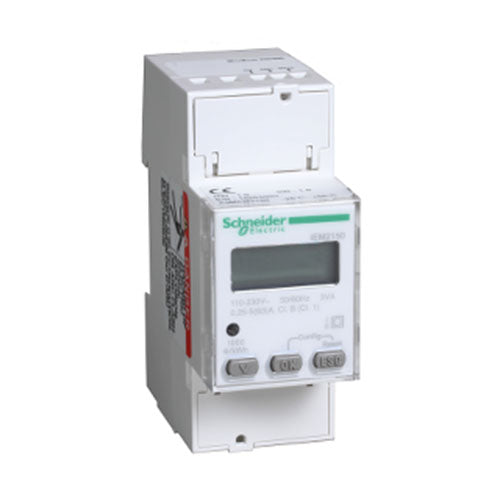

Schneider Electric Acti 9 iEM2150 Rail Mount Energy Meter 63A Modbus Communication

Schneider ElectricSKU: A9MEM2150
FREE delivery in 2 to 7 business days

Sale priceR 5,211.00
Sold out
Livecopper Sales person smiling at the camera


Product Features
  • iEM2150 single-phase kilowatt-hour meter, with partial counter and current and voltage, power measurement, ModBus Communication
  • The Acti 9 iEM2150 Series Energy Meters is a competitive range of DIN rail-mounted energy meters ideal for sub-billing and cost allocation applications
  • Easy to integrate electrical distribution measurements into customer's energy management systems
  • Innovative design makes the meters smart and simple
  • Cost management applications
  • Bill verification
  • Network management applications
  • Basic electrical parameters like current, voltage and power
  • Self powered meters
  • Compliance with IEC 62053-21, IEC 62053-23, EN 50470-3
  • Compact, 1 or 2 module width
  • Anti-tamper security features ensure the security of your data
  • Single phase circuit plus neutral
  • Four quadrant energy measurement
  • IP40 front panel and IP20 casing
  • MID compliant providing certified accuracy and data security

Technical Specifications
  • Measurement accuracy: Class 1
  • Voltage: 92 to 276V AC
  • Frequency: 50/60hZ
  • Amperage: 63A direct connected
  • Temperature: -25°C to 55° C
  • Mounting: DIN rail mount
  • Width: 2 x 18mm
  • Technical document: Download
