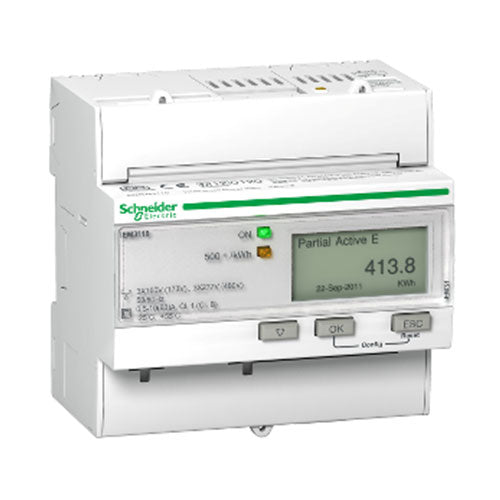

Schneider Electric Acti 9 iEM3110 Rail Mount Energy Meter 63A Pulse MID

Schneider ElectricSKU: A9MEM3110

R 6,113
In stock
Livecopper Sales person smiling at the camera

Product Information

Product Features
  • iEM3110 DIN rail-mounted energy meters ideal for sub-billing and cost allocation applications
  • Easy to integrate electrical distribution measurements into customer's facility management systems
  • Self powered meters
  • Chain measurement (meters + CTs) accuracy class 1
  • Compliance with IEC 61557-12, IEC 62053-21/22, IEC 62053-23, EN 50470-3
  • Compact, 5 module width
  • Graphical display for easy viewing
  • Onboard Modbus
  • Easy wiring (without CTs) iEM3110 series
  • Double fixation on DIN rail (horizontal or vertical)
  • Anti-tamper security features ensure the security of your data
  • MID compliant (selected models) providing certified accuracy and data security

Technical Specifications
  • Measurement accuracy: Class 1
  • Voltage: 173 to 480V AC
  • Frequency: 50/60hZ
  • Amperage: 63A
  • Temperature: -25°C to 55° C
  • Mounting: DIN rail mount
  • Width: 18mm x 5
  • Technical documents: Download
