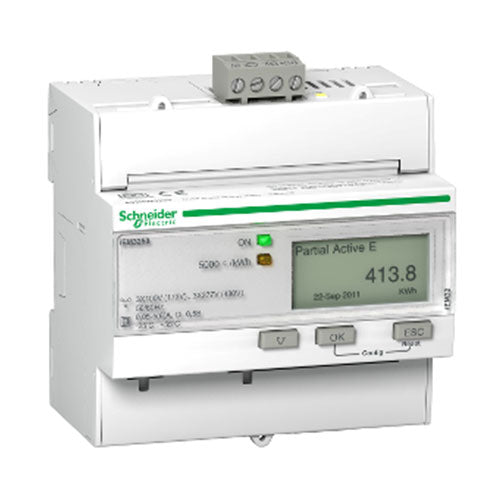

Schneider Electric Acti 9 iEM3250 Rail Mount Energy Meter 63A TC Modbus
Adding product to your cart
Product Description
Product Features
- iEM3250 TC Modbus
- iEM3250 DIN rail-mounted energy meters ideal for sub-billing and cost allocation applications
- Easy to integrate electrical distribution measurements into customer's facility management systems
- Self powered meters
- Chain measurement (meters + CTs) accuracy class 1
- Compliance with IEC 61557-12, IEC 62053-21/22, IEC 62053-23, EN 50470-3
- Compact, 5 module width
- Graphical display for easy viewing
- Onboard Modbus
- Easy wiring (without CTs) iEM3250 series
- Double fixation on DIN rail (horizontal or vertical)
- Anti-tamper security features ensure the security of your data
- MID compliant (selected models) providing certified accuracy and data security
Technical Specifications
| Colour: |
White |
| Mounting Type: |
DIN rail mount |
| Measurement accuracy: |
Class 1/0.5s |
| Current: |
63A |
| Voltage: |
277 to 480V AC |
| Frequency: |
50/60hZ |
| Height: |
95mm |
| Width: |
90mm |
| Depth: |
69mm |
Technical Documents
