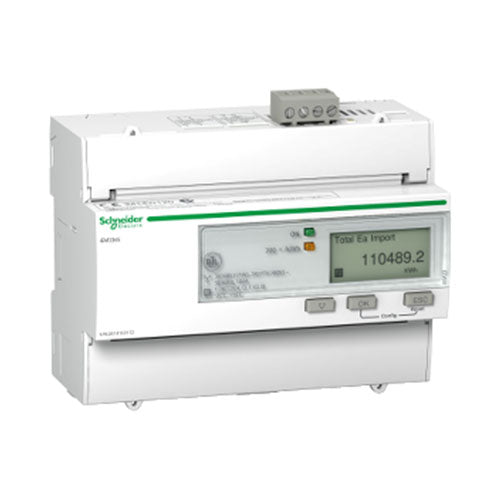

Schneider Electric Acti 9 iEM3255 Rail Mount Energy Meter 125A BACnet MID


Schneider Electric Acti 9 iEM3255 Rail Mount Energy Meter 125A BACnet MID
Regular price
R 12,157.00
Sale price
R 12,157.00
Regular price
Check Availability
Unit price
per
Schneider Electric
A9MEM3365
Technical Specifications


Product Description

Product Features
  • iEM3255 Rail Mount Energy Meter 125A BACnet MS/TP, MID + 1DI Wages
  • iEM3255 DIN rail-mounted energy meters ideal for sub-billing and cost allocation applications
  • Easy to integrate electrical distribution measurements into customer's facility management systems
  • Self powered meters
  • Chain measurement (meters + CTs) accuracy class 1
  • Compliance with IEC 61557-12, IEC 62053-21/22, IEC 62053-23, EN 50470-3
  • Compact, 5 module width
  • Graphical display for easy viewing
  • Onboard Modbus
  • Easy wiring (without CTs) iEM3000 series
  • Double fixation on DIN rail (horizontal or vertical)
  • Anti-tamper security features ensure the security of your data
  • MID compliant (selected models) providing certified accuracy and data security

Technical Specifications
Colour: White
Mounting Type: DIN rail mount
Measurement accuracy: Class 1/0.5s
Current: 125A
Voltage: 277 to 480V AC
Frequency: 50/60hZ
Height: 103.2 mm
Width: 126 mm
Depth: 69.3 mm
Technical Documents
Technical Document: Download
