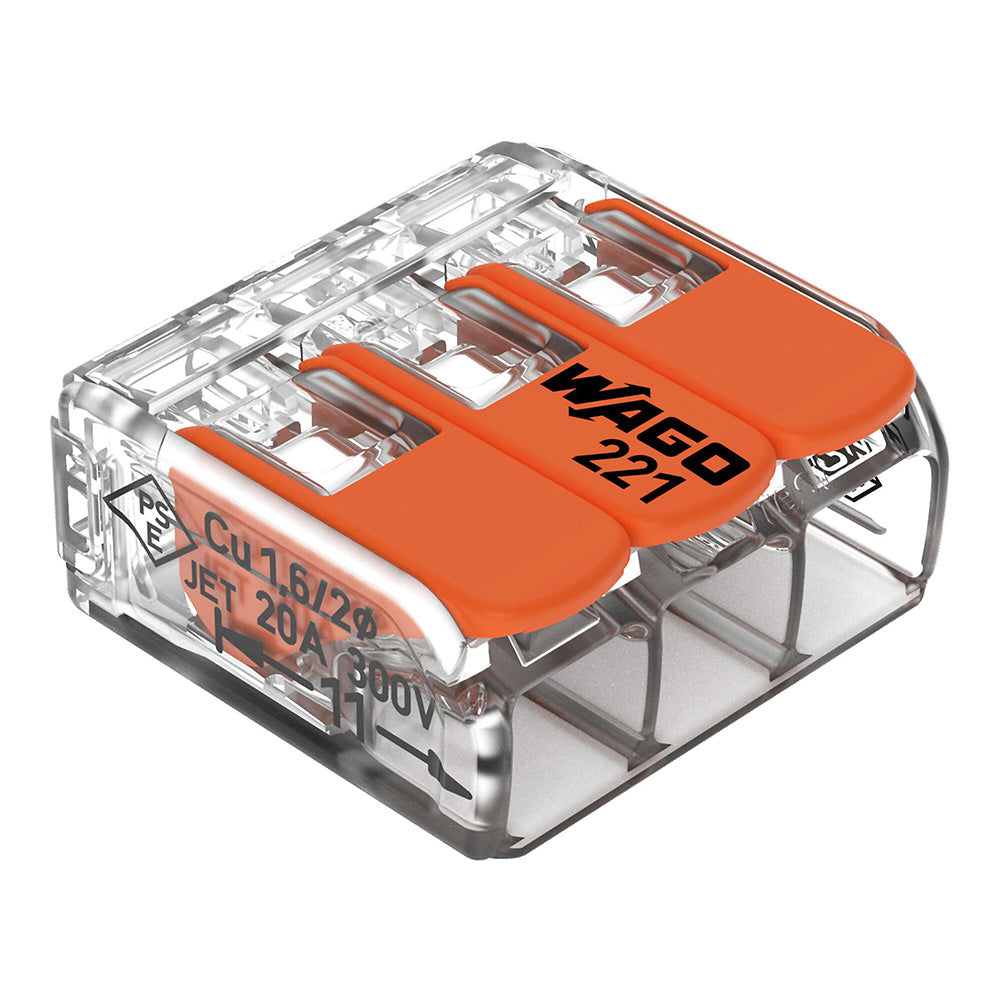

Wago 221 Lever Type 3-Way Splicing Connector 0.14 - 4mm² - Orange
SKU:
221-413
Adding product to your cart
Product Video
Product Features
- The slim design promotes easy installation in tight spaces
- Tool-free connection and disconnection thanks to convenient lever technology
- Connect solid, stranded, and fine stranded conductors
- Transparent housing for visual inspection
Application
- Electrical installations
- Lighting fixtures
- Control Wiring
Safety Features
- RoHS Compliance Status: Compliant, No Exemption
Technical Specifications
| Colour: |
Transparent / Orange |
| Material: |
Polycarbonate |
| Connections: |
3 Way |
| Surge Voltage: |
4kV |
| Voltage: |
IEC/EN: 450V / UL 1059: 600V |
| Rated Current: |
IEC/EN: 32A / UL 1059: 20A |
| Height: |
8.3mm |
| Width: |
18.7mm |
| Depth: |
18.6mm |
| Strip Length: |
11mm |
| Connection Size: |
Solid Conductor: 0.2 - 4mm² / Stranded Conductor: 0.2 - 4mm² / Fine-stranded Conductor: 0.14 - 4mm² |
| Operating Temperature: |
105°C |
| Ambient Temperature: |
+85°C |
| Pack Size: |
1 Piece |
| Weight: |
2.5g |
