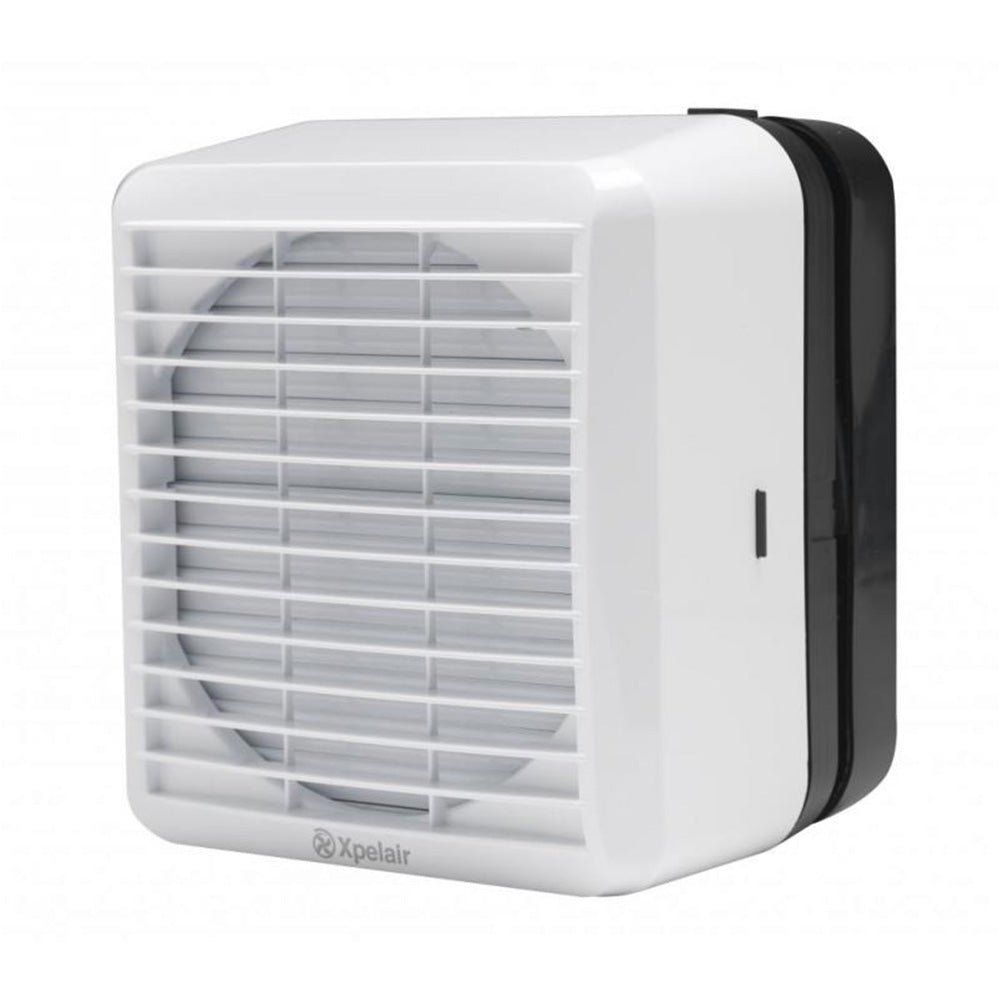

Xpelair Window / Surface Fan 150mm
SKU: GX6ECProduct Information
The GX6EC Fan is purpose designed for use in kitchens and utility rooms. The fan can be window or panel mounted as supplied or wall-mounted using an optional wall kit. The product comes complete with a silent electro-thermal shutter. The fan has a low watt EC motor with extremely low power consumption and therefore low running costs.
A trickle ventilation facility is available for background ventilation when not in use.
Product Features
- Single speed extract rate of 229m3/hr
- Low Watt EC motor giving low running costs
- 184mm spigot diameter
- Low noise level of 34dBA @3M
- Complies with Building Regulations Part F for kitchens
- Silent electro-thermal shutter
- 5 Year guarantee
Technical Specifications
| Colour: | White |
| Mounting Type: | Wall, Window or Ceiling Mount |
| Motor Type: | EC |
| Flow Rate: | 64L/s / 229m³/h |
| Wattage: | 9.5W |
| Voltage: | 120 - 230V, 50 - 60Hz |
| Height: | 240mm |
| Width: | 230mm |
| Depth: | 170mm |
| Duct Size: | 184mm |
| IP Rating: | IPX4 |
