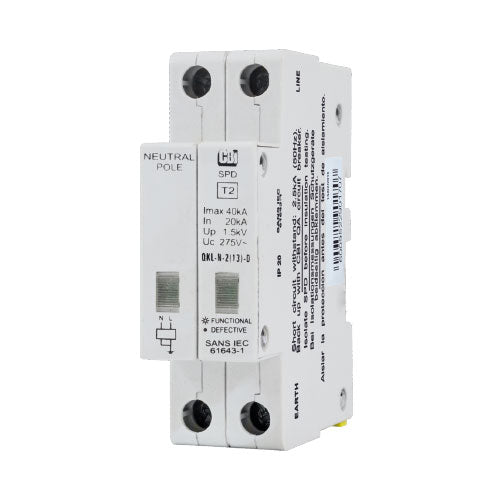

CBi DIN Rail Surge Protector QKLN-2(13)D 1P+N 275V with Indication - 40kA


CBi DIN Rail Surge Protector QKLN-2(13)D 1P+N 275V with Indication - 40kA
Regular price
R 1,509.00
Sale price
R 1,509.00
Regular price
Check Availability
Unit price
per
CBi Electric
QKLD0002
Technical Specifications


Product Description

Product Features
  • LED indication of the SPD's condition - while ON, the SPD is functional, if OFF and the mains power is still available, then the SPD is no longer functional and should be replaces
  • Thermal disconnect device (prevents potential thermal runaway problems)
  • One port SPD (no series impedance)
  • Required to be backed up by a QF MCB

Safety Features
  • Required to be backed up by a QF MCB
  • Surge Protection Devices should be installed by a trained professional to prevent any damages caused by incorrect installation
  • Class II Surge Protection Devices are only to be used where items are not subjected to direct lightning strikes and the voltage / current surges are reduced in magnitude

Technical Specifications
Colour: Grey
Material: Copper and polycarbonate
Mounting Type: DIN Rail
Poles: 1 + Neutral
Short Circuit Withstand: 5kA
Escutcheon: 45mm
Discharge Current (Imax): 40kA
Discharge Current (Inom): 20kA
Voltage: 275Vac
Width: 26mm
Length: 84.8mm
Depth: 66mm
Class of Surge Protection Device: II
IP Rating: IP20
Weight: 284g

Technical Documents
Technical Document: Download
