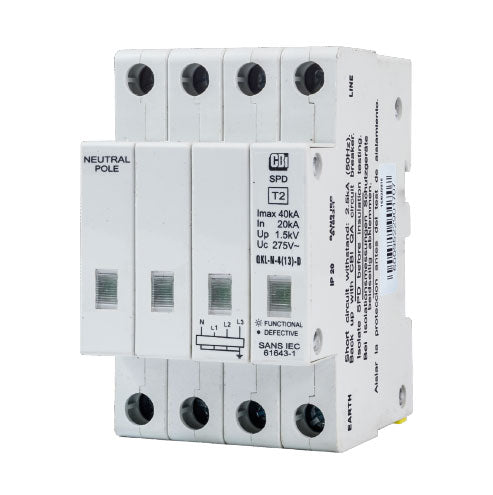

CBi DIN Rail Surge Protector QKLN-4(13)D 3P+N 275V with Indication - 40kA
Adding product to your cart
Product Description
Product Features
- LED indication of the SPD's condition - while ON, the SPD is functional, if OFF and the mains power is still available, then the SPD is no longer functional and should be replaces
- Thermal disconnect device (prevents potential thermal runaway problems)
- One port SPD (no series impedance)
- Required to be backed up by a QF MCB
Safety Features
- Required to be backed up by a QF MCB
- Surge Protection Devices should be installed by a trained professional to prevent any damages caused by incorrect installation
- Class II Surge Protection Devices are only to be used where items are not subjected to direct lightning strikes and the voltage / current surges are reduced in magnitude
Technical Specifications
Colour: |
Grey |
Material: |
Copper and polycarbonate |
Mounting Type: |
DIN Rail |
Poles: |
3 + Neutral |
Short Circuit Withstand: |
5kA |
Escutcheon: |
45mm |
Discharge Current (Imax): |
40kA |
Discharge Current (Inom): |
20kA |
Voltage: |
275Vac |
Width: |
52mm |
Length: |
84.8mm |
Depth: |
66mm |
Class of Surge Protection Device: |
II |
IP Rating: |
IP20 |
Weight: |
568g |
