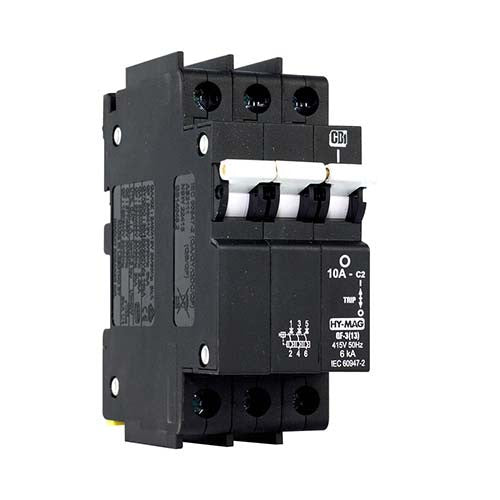

CBi QF-3(13) Dual Mount Circuit Breaker C2 3P 6kA
SKU:
QFA38205
Adding product to your cart
Product Features
- AC circuit breaker
- Hydraulic-magnetic technology
- Ratings available in 5A to 25A
- Can be switched on immediately after tripping
- Trip indication with mid-trip position
- Suitable to use for electrical isolation
- Shell designed for easier installation onto busbar
Application
- AC branch circuit protection
- Telecom / datacom equipment
- Lighting control
- UPS equipment
- Alternative energy equipment
- Mobile power generation equipment
- Railway signaling equipment
- Residential equipment
- Industrial equipment
Safety Features
- Miniture Circuit Breakers should be installed by a trained professional to prevent any damages or injury caused by incorrect installation
Technical Specifications
| Colour: |
Black |
| Handle Colour: |
White |
| Mounting Type: |
Dual Mount |
| Number of Modules: |
3 |
| Poles: |
3 Poles |
| Curve: |
C-Curve (Standard) |
| Protection Type: |
Overload and short circuit protection |
| Escutcheon: |
57mm |
| Current: |
Available in 5A to 25A |
| kA Rating: |
6kA |
| Voltage: |
415V AC |
| Height: |
97.2mm |
| Width: |
39mm |
| Weight: |
306g |
Technical Documents
