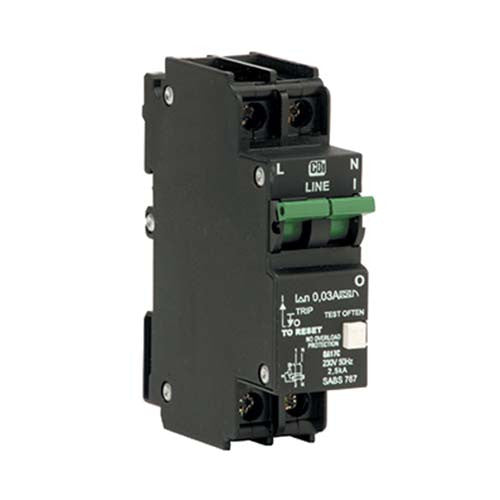

CBi QA17C Dual Mount Earth Leakage 1P+N 3kA 63A
SKU:
QA17C63
Adding product to your cart
Product Features
- Hydraulic-magnetic technology
- 100% rating capability, independent of ambient temperature
- Reset immediately after overload
- Trip indication with mid-trip position
- Shell designed for easier installation onto busbar
Application
- Residential and commercial applications requiring high sensitivity earth leakage protection from electrical shock and fire hazards
- Mobile power generation equipment
- Railway signalling equipment
- Telecom / datacom equipment
- Lighting control
- UPS equipment
- Alternative energy equipment
Safety Features
- Earth Leakage Devices should be installed by a trained professional to prevent any damages or injury caused by incorrect installation
- Single phase without overload protection
- Required to be backed by suitable Short Circuit Protection Devices
Technical Specifications
| Colour: |
Black |
| Material: |
Plastic |
| Mounting Type: |
Dual Mount |
| Poles: |
1 Pole + Neutral |
| Protection Type: |
Earth Leakage Protection without Overload Protection |
| Escutcheon: |
57mm |
| Current: |
63A |
| kA Rating: |
3kA |
| mA Rating: |
30mA |
| Voltage: |
240V AC |
| Height: |
92.8mm |
| Width: |
26mm |
