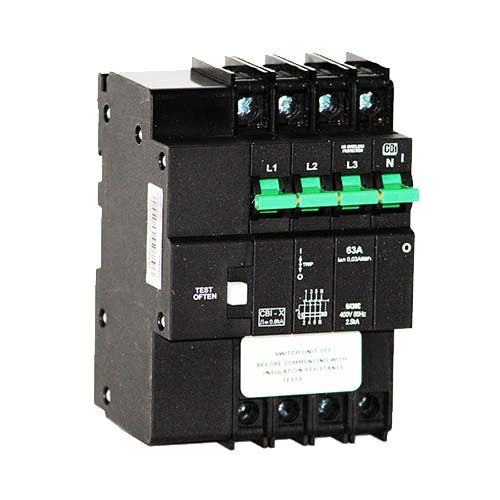

CBi QA36CW Dual Mount Earth Leakage 3P+N 3kA 63A
SKU:
QA36CW63
Adding product to your cart
Product Features
- Hydraulic-magnetic technology
- 100% rating capability, independent of ambient temperature
- Can be switched on immediately after tripping
- Trip indication with mid-trip position
- Shell designed for easier installation onto busbar
- Precision tripping characteristics
Application
- Residential and commercial applications requiring high sensitivity earth leakage protection from electrical shock and fire hazards
- Mobile power generation equipment
- Railway signalling equipment
- Telecom / datacom equipment
- Lighting control
- UPS equipment
- Alternative energy equipment
Safety Features
- Earth Leakage Devices should be installed by a trained professional to prevent any damages or injury caused by incorrect installation
- Three phase without overload protection
Technical Specifications
| Colour: |
Black |
| Material: |
Plastic |
| Mounting Type: |
Dual Mount |
| Poles: |
3 Poles + Neutral |
| Protection Type: |
Earth Leakage Protection without Overload Protection |
| Escutcheon: |
57mm |
| Current: |
63A |
| kA Rating: |
3kA |
| mA Rating: |
30mA |
| Voltage: |
415V AC |
| Height: |
112.8mm |
| Width: |
78mm |
