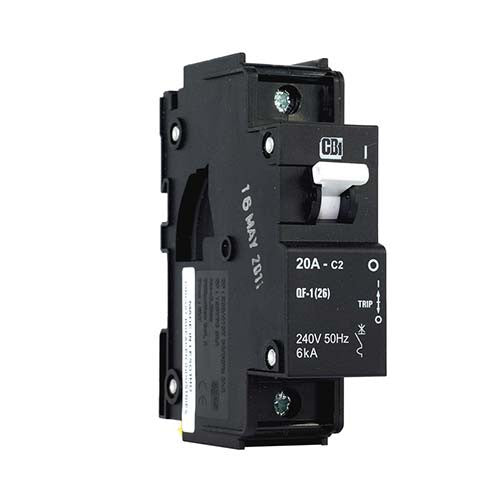

CBi QF-1(26) Dual Mount High Rating Circuit Breaker C2 1P 6kA
SKU:
QFE18270
Adding product to your cart
Product Features
- AC circuit breaker
- Hydraulic-magnetic technology
- Available in ratings of 70A to 125A
- Precision tripping characteristics
- Trip indication with mid-trip position
- Rest immediately after overload
Application
- AC branch circuit protection
- Telecom / datacom equipment
- Lighting control
- UPS equipment
- Alternative energy equipment
- Mobile power generation equipment
- Railway signalling equipment
- Residential equipment
- Industrial equipment
Safety Features
- Miniture Circuit Breakers should be installed by a trained professional to prevent any damages or injury caused by incorrect installation
Technical Specifications
| Colour: |
Black |
| Material: |
Plastic |
| Handle Colour: |
White |
| Mounting Type: |
Dual Mount |
| Number of Modules: |
1 |
| Poles: |
1 Pole |
| Curve: |
C-Curve (Standard) |
| Protection Type: |
Overload and short circuit protection |
| Escutcheon: |
57mm |
| Current: |
Available in 70A to 125A |
| kA Rating: |
6kA |
| Voltage: |
240V AC |
| Height: |
113.4mm |
| Width: |
26mm |
| Weight: |
200g |
