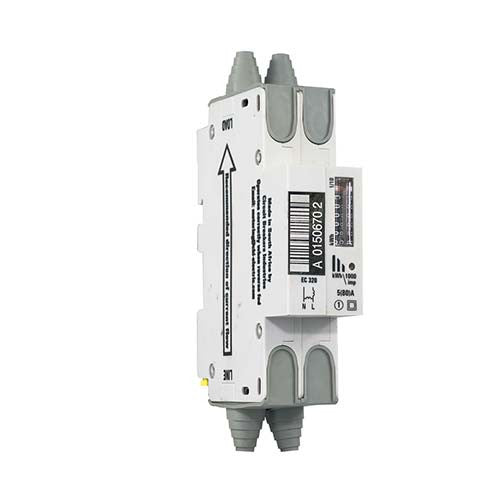

CBi Ecolec Rail Mount Meter 45mm 2 Module 5(80)A
Adding product to your cart
Product Description
Product Features
- IEC 61036 class 1 electricity meters
- Single phase alternatives
- Fits all Mini and DIN Rail Distribution boards
- 7 digits indication of energy consumed to 1 / 10 kWh
- Dual colour lamp shows rate of consumption and/or confirms presence of incoming supply
- Supplied with anti-tamper terminal protection plugs
Technical Specifications
Colour: |
Grey |
Material: |
Plastic |
Mounting Type: |
DIN Rail |
Measurement accuracy: |
Class 1 |
Escutcheon: |
45mm |
Current Operating Range: |
0.015 - 125A |
Voltage: |
230V AC |
Frequency: |
50/60hZ |
Phase: |
1 + Neutral |
Height: |
107mm |
Width: |
26mm |
Depth: |
66mm |
Operating Temperature: |
-40 °C to +75 °C |
Weight: |
158.5g |
