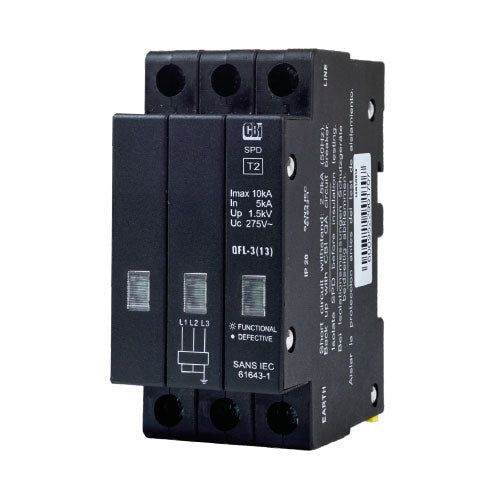

CBi Mini Rail Surge Protector QFL-3(13) 3P 275V with Indication - 10kA
Adding product to your cart
Product Description
Product Features
- LED indication of the SPD's condition - while ON, the SPD is functional, if OFF and the mains power is still available, then the SPD is no longer functional and should be replaces
- Thermal disconnect device (prevents potential thermal runaway problems)
- One port SPD (no series impedance)
- Requires to be backed up by a QA MCB
Safety Features
- Requires to be backed up by a QA MCB
- Surge Protection Devices should be installed by a trained professional to prevent any damages caused by incorrect installation
- Class II Surge Protection Devices are only to be used where items are not subjected to direct lightning strikes and the voltage / current surges are reduced in magnitude
Technical Specifications
Colour: |
Black |
Material: |
Copper and polycarbonate |
Mounting Type: |
Mini Rail |
Poles: |
3 |
Short Circuit Withstand: |
2.5kA |
Escutcheon: |
57mm |
Discharge Current (Imax): |
10kA |
Discharge Current (Inom): |
5kA |
Voltage: |
275Vac |
Width: |
39mm |
Length: |
84.8mm |
Depth: |
66mm |
Class of Surge Protection Device: |
II |
IP Rating: |
IP20 |
Weight: |
426g |
