Eurolux Braai Large Oval Bulkhead - Black
SKU: B301Recommended and/or Required Products
Product Information

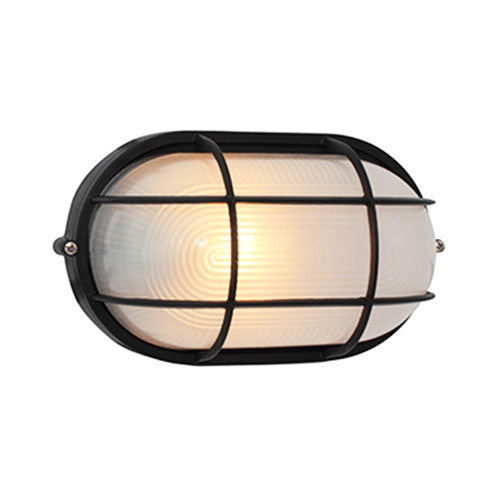

Built for larger braai installations, the Large Oval Braai Bulkhead provides strong, practical illumination around built-in braais and covered outdoor cooking areas. Its die-cast aluminium body, frosted glass diffuser, protective grid, silicone gasket and 600mm silicone cord provide a rugged construction for demanding installations. The fitting includes an R7s QI J118mm 120W halogen lamp and carries an IP44 rating for splash resistance.
Product Features
- Large oval braai bulkhead designed for high-temperature cooking areas
- Durable die-cast aluminium housing with frosted glass diffuser and protective grid

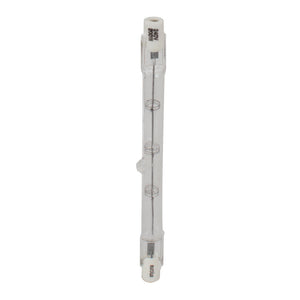

- Includes 1 x R7s QI J118mm 120W halogen lamp
- Silicone gasket and 600mm silicone cord for demanding installations
- Suitable for ambient temperatures up to 150°C
- IP44 splash-resistant construction
- Surface-mounted design
- Not suitable for LED lamps
- Includes Bulb
- 3 Year Warranty
Application
- Built-in braais
- Covered outdoor cooking areas
- Braai rooms and enclosed entertainment areas
- Food preparation and grilling areas
What's in the Box
- 1 x Large Oval Braai Bulkhead
- 1 x R7s QI J118mm 120W halogen lamp
Safety Features
- Always switch off the electricity supply before installation, maintenance or lamp replacement.
Frequently Asked Questions
-
Is a bulb included with the large braai light?
Yes. The fitting includes 1 x R7s QI J118mm 120W halogen lamp. -
What is the maximum ambient temperature?
The fitting is suitable for ambient temperatures up to a maximum of 150°C. -
Can I use an LED R7s lamp in this fitting?
No. Eurolux specifies that this braai light is not suitable for LED lamps. -
Is the fitting suitable for outdoor areas?
It has an IP44 rating for splash resistance and is suitable for appropriate covered or sheltered outdoor installations. -
What are the dimensions of the large braai light?

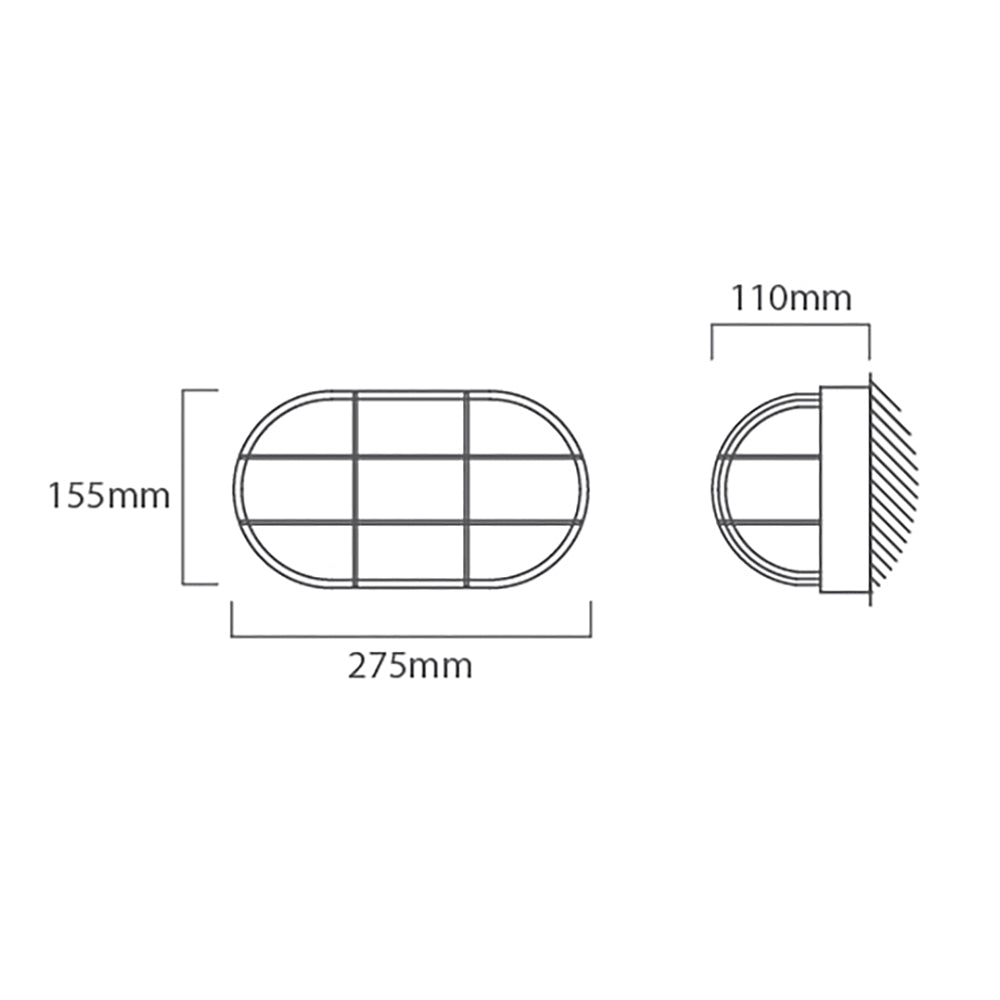

The fitting measures 275mm wide, 155mm high and 110mm deep.
Technical Specifications
| Colour: | Black |
| Finish: | Matt |
| Material: | Die-Cast Aluminium |
| Diffuser Finish: | Frosted |
| Diffuser Material: | Glass |
| Mounting Type: | Surface |
| Shape: | Oval |
| Lamp Base: | R7s |
| Number of Bulbs: | 1 x Bulb |
| Dimmable: | No |
| Voltage: | 220 - 240V |
| Height: | 155mm |
| Width: | 275mm |
| Depth: | 110mm |
| Ambient Temperature: | 150°C (Max.) |
| IP Rating: | IP44 (splash-resistant, bathrooms and sheltered outdoor areas) |
