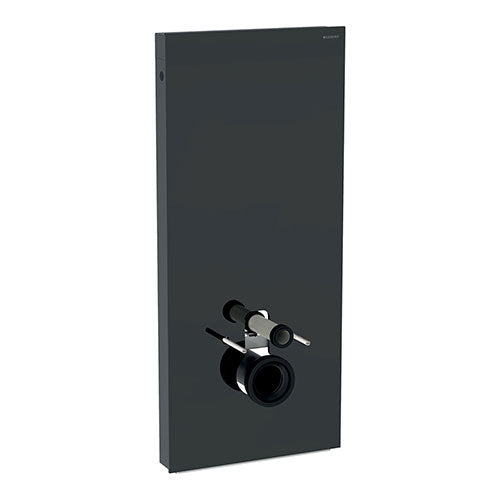

Geberit Monolith Plus for Wall-Hung Toilet 1140mm - Lava

The Geberit Monolith Plus sanitary module for WCs is truly multi-talented. The integrated odour extraction unit, intelligent sensor technology and an especially convenient flush actuation are only three of its many virtues.

Product Features

• Dual flush
• Self-supporting
• State-of-the-art technology
• Height adjustable up to 7 cm
• Side cladding made of aluminium brushed
• Cistern fully insulated against condensation
• Fastening height WC ceramic appliance 35 ± 1 cm
• Compensation of dimensional tolerances possible
• Soft-touch buttons for flush actuation and odour extraction
• Operation with extra-low voltage, no mains voltage in cistern
• Integrated odour extraction unit via quiet fan for pleasant freshness
• Odour extraction unit with ceramic honeycomb filter can be installed without tools
• Day/night detection can be set for orientation light; can be set in seven different colours
• Water supply connection on the rear centre, bottom, and possible on the left/right - with accessories
• Orientation light and odour extraction activated when a user approaches; automatically switches off after a predefined running time
• 2 Year Guarantee

Application

• For installation in front of drywalls or solid walls
• For replacing low-level exposed cisterns and half-high level exposed cisterns
• For connecting Geberit AquaClean toilet complete and enhancement solutions, with accessories
• For replacing wall hung toilets with a pressure flushing valve, close-coupled exposed cistern and a concealed cistern with maximum service opening height < 109 cm

What's in the Box

• 1 x Toilet Cistern
• 1 x Base Cover
• Fastening Material
• 1 x Power Supply Unit
• 2 x M12 Threaded Rods
• 1 x Sound Insulation Set
• 1 x ø 44 / 55mm EPDM Sleeve
• 1 x 160mm Flush Bend Extension
• 1 x ø 90 mm PE-HD Straight Connector
• 1 x ø 90 / 110mm PE-HD Adapter Socket 1 x Female Socket for Mains Connection1 x Water supply connection set with 2 angle stop valves, 1/2"

Safety Features

• Cleaning agents containing chlorine or acids, or ones that are corrosive, abradant or scouring, could damage the surface - use only mild cleaning agents and water

Technical Specifications
