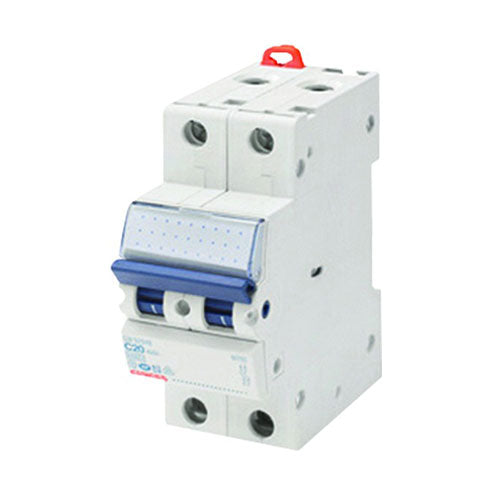

Gewiss DIN Mini Circuit Breakers 2P 16A C 4.5/6kA 2M
Adding product to your cart
Product Description
Product Features
- Miniature circuit breaker MT45 range
- The position of the releases on the front, with magnetic turns and opposing arc chute chambers, allows a notable reduction in arc time and short-circuit strain on the mechanism
- It has therefore been possible to halve the system and lighten the mechanism, which has short pre-arc times thanks to the reduced energy
- The new mechanism has been sized and optimised by means of a sophisticated planning, engineering and testing programme
- Manual control lever with a position coherent with the contacts, allowing the circuit breaker to be used as a switch disconnector (in compliance with Standard CEI 64-8)
- Toggle joint tripping mechanism with tripping accelerator for short-circuit condition
- Electromagnets for instantaneous short-circuit tripping
- Silver-graphite contacts to maintain electrical characteristics over time
- Magnetic turns in the arc chute chambers
- Arc chute chambers with 12 reeds in a ferromagnetic material
- Shell-type terminals with anti-loosening tightening system
Technical Specifications
Colour: |
White |
Material: |
Plastic |
Handle Colour: |
Blue |
Poles: |
2 |
Current: |
16A |
kA Rating: |
4.5/6kA |
Voltage: |
230/415V |
