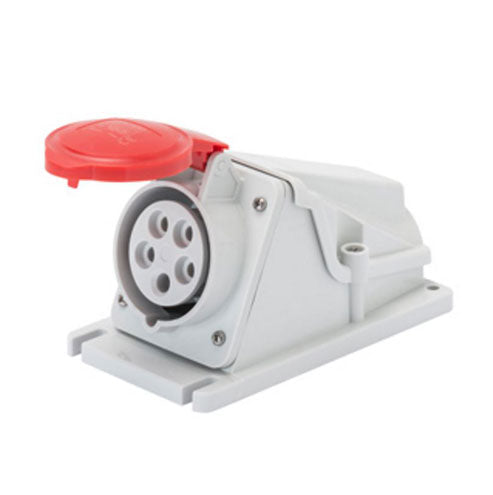

Gewiss 16A 5 Pin Single Socket- P44
Adding product to your cart
Product Description
Product Features
- A range of trailing and fixed plugs and socket-outlets for industrial use, complying with the dimensional and performance standards unified at International level (IEC 60309) and assimilated by the European Standards (EN 60309) and Italian Standards (CEI 23-12)
- Socket-outlets and plugs with a rated current of 63 and 125A are equipped with an extra pilot contact (CP) for creating an electric interlock
- The range is completed with 90° fixed plugs and 10° and 90° fixed socket-outlets
- Sleeves and pins are obtained from solid brass bar, type Pt. CuZn40Pb2 (Cu 58%, Zn 40%, Pb 2%); anti-loosening terminals with unlosable screws, and built-in cable clamp with anti-abrasion cable gland
Technical Specifications
Colour: |
Red and White |
Material: |
Plastic |
Mounting Type: |
Surface |
Socket Type: |
Industrial 3 Pole + Neutral + Earth |
Number of Sockets: |
1 |
Number of Pins: |
5 |
Current: |
16A |
Voltage: |
400V |
Height: |
160mm |
Width: |
90mm |
Length: |
103mm |
IP Rating: |
IP44 |
