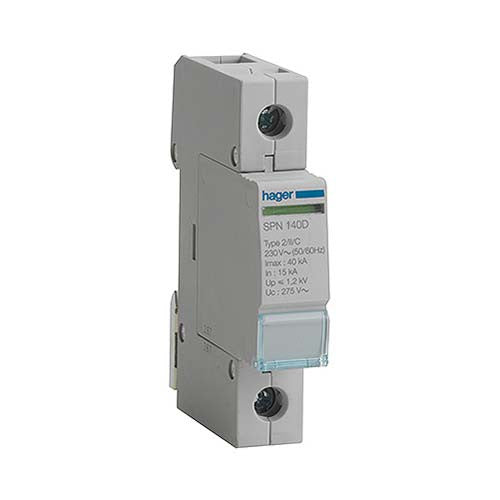

Hager Surge Protector Class 2 1P 40kA
SKU:
SPN140D
Adding product to your cart
Product Features
- Class 2 type surge protection
- For the protection of low voltage equipment against transient voltages and current surges from lightning
- Protects against transients produced by switching characteristics such as in switching of distribution networks, transformers, motors, etc
- Protection for domestic, industrial and commercial buildings
- Suitable for second level protection in distribution panels where type 1 protectors are installed or areas not exposed to direct lightning strikes and with no external lightning protection system
- When the fault indication window turns from green to red please replace the cartridge as soon as possible
Technical Specifications
| Colour: |
White |
| Material: |
Plastic |
| Mounting Type: |
DIN Rail |
| Number of Modules: |
1 |
| Poles: |
1 |
| Discharge Current (Imax): |
40kA |
| Discharge Current (Inom): |
15kA |
| Voltage: |
230V AC |
| Width: |
17.5mm |
| Class of Surge Protection Device: |
II |
| IP Rating: |
IP20 |
