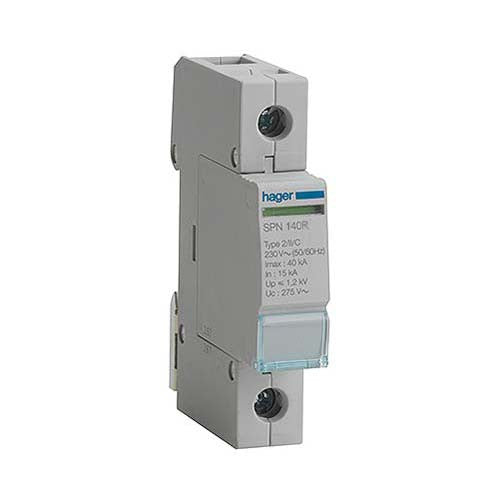

Description
Product Features
- Class 2 type surge protection
- For the protection of low voltage equipment against transient voltages and current surges from lightning
- Protects against transients produced by switching characteristics such as in switching of distribution networks, transformers, motors, etc
- Remote signalling contact for monitoring
- Protection for domestic, industrial and commercial buildings
- Suitable for second level protection in distribution panels where type 1 protectors are installed or areas not exposed to direct lightning strikes and with no external lightning protection system
- When the fault indication window turns from green to red please replace the cartridge as soon as possible
Technical Specifications
Poles: | 1P |
Voltage: | 230V AC |
Frequency: | 50/60Hz |
Rail mount: | DIN rail |
MCB width: | 17.5mm |
kA rating: | 40kA |
IP rating: | IP20 |
Number of modules: | 1 |
