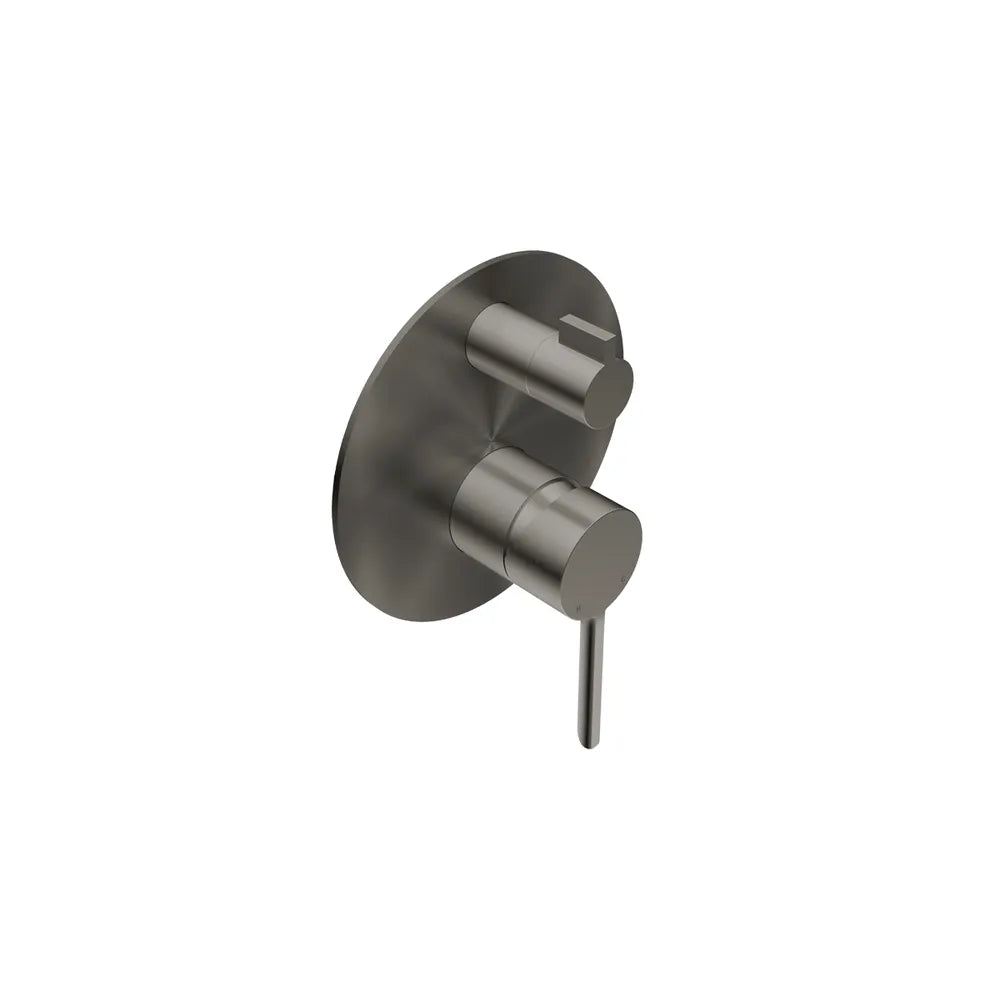

LIQUIDRed STILO Shower Mixer with Divert Trim Set - Brushed Graphite

The STILO Shower Mixer + Diverter Trim Set offers the same sleek sophistication and ultra-thin 3mm cover plate for a refined, minimalistic look. Featuring the signature STILO pin handle lever—a contemporary take on the classic pin design. Designed to pair with a separately purchased concealed body.

Note: This product includes only the Trim Set. For new installations, the Concealed Body with Diverter (0012) must be purchased separately.

Crafted from all stainless steel this shower mixer with diverter is built to withstand the test of time. The diverter is a zero pressure diverter which means that it does not require any water pressure to work, and will therefore work at low water pressure. Simply turn the diverter knob anti-clockwise and the water will be diverted to the alternate outlet, usually a hand shower.

This product can also be combined with the Bath Spout (1415) for a wall-mounted bath mixer and spout. Alternatively it can also be installed alone above the bath where the water spout is on the bath in the form of the Bath Filler and Overflow (1012).

By separating the concealed body and trim set, the product finish can be changed at a later date simply by purchasing a new trim set. This feature also helps preventing unnecessary damage to the trim set during the installation process, as the trim set should only be installed once the tiles have been installed and cleaned.

Product Features

• 22l/min Flow Rate for concealed body
• Ultra thin 3mm Thickness Cover plate
• Diverter Knob rotates and is zero pressure
• Stainless Steel concealed body and trim set, including the lever
• Sedal Cartridge
• Made from Grade 304 Stainless Steel.
• 15 Year product guarantee, 5 year colour guarantee

Application

• Suitable to be installed in a shower or above a bath.

What's in the Box

• 3mm Cover Plate (stainless steel)
• STILO 42mm Lever (stainless steel)
• Lever Dome Cap (stainless steel)
• Concealed Mixer Sleeve (stainless steel), Diverter Sleeve (stainless steel) & Diverter Knob (stainless steel)
• 2.5mm Allen Key
• Sachet of silicone grease
• Installation Instructions
• Cleaning cloth

Technical Specifications

Technical Documents
