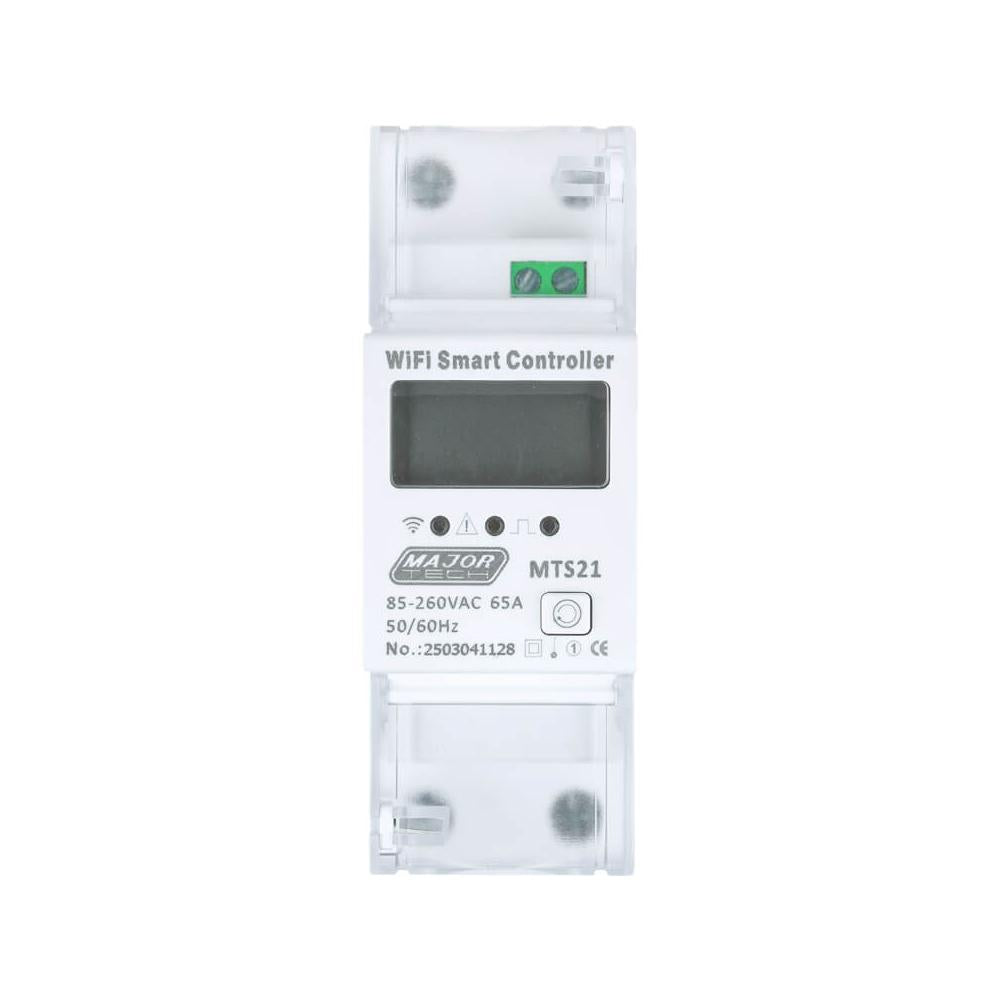

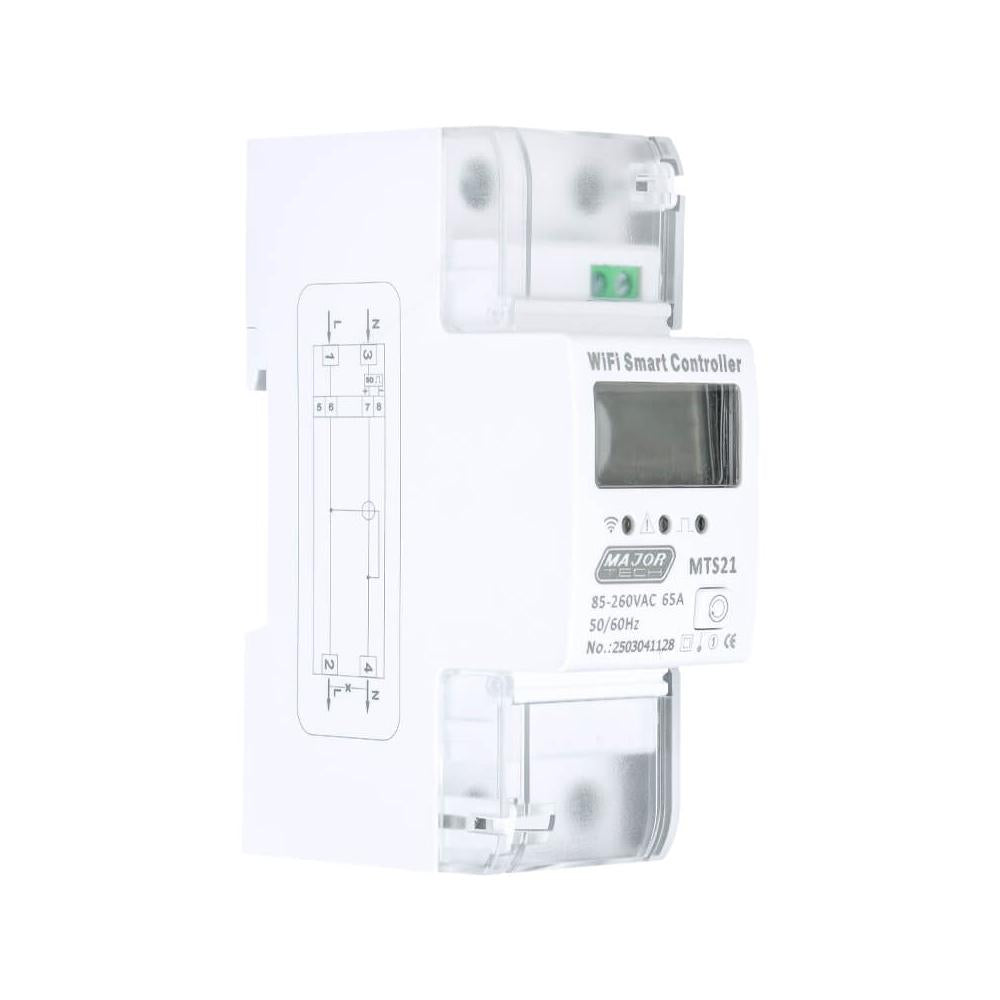

Major Tech Smart Energy Meter and Timer

Product Features

• Major Tech Hub Smart App enables remote monitoring and control from a compatible smart device
• Monitors voltage, current, active power, power factor and frequency in real time
• Tracks accumulated energy consumption with a clear LCD reading up to 99999.9kWh
• View daily or custom energy-consumption periods of up to 2 months, with Excel export and sharing options
• Configurable load protection can alert and disconnect the load during over-voltage, under-voltage or over-current conditions
• Rated for loads up to 65A and 9600W resistive
• Dual connectivity with 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5.2

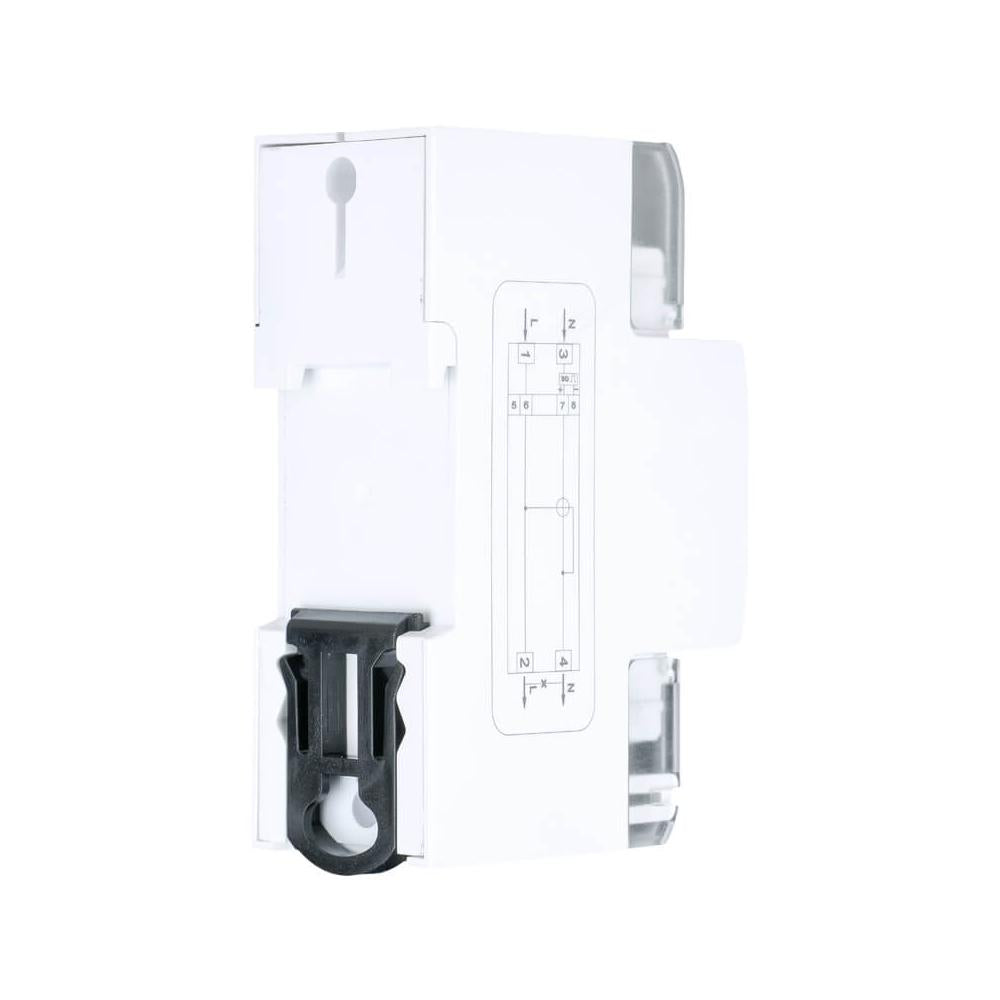

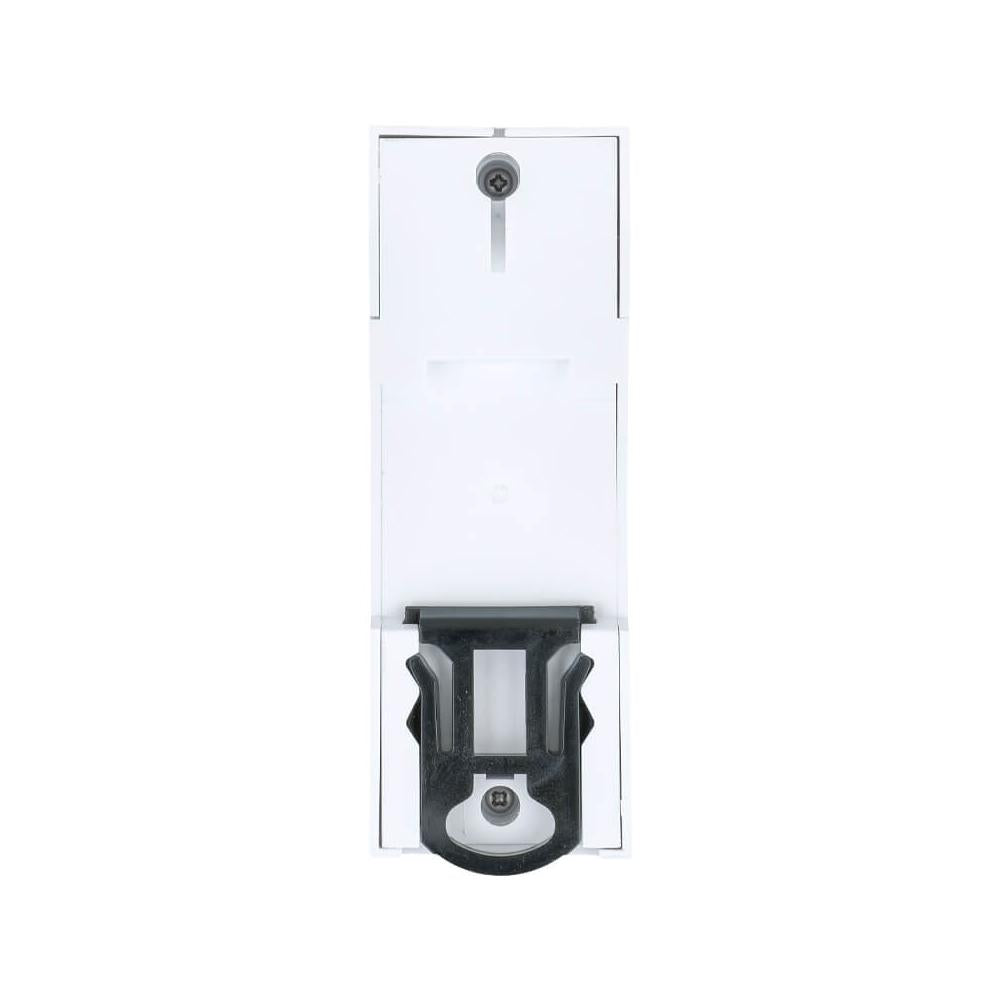

• 35mm DIN rail compatible for convenient distribution-board installation
• Voice control compatible with Amazon Alexa and Google Assistant
• Class 1 kWh accuracy with Class 0.5 R.M.S accuracy
• 2 Year Limited Warranty

Application

• Residential energy monitoring and smart load control
• Commercial and small-business energy consumption monitoring
• Individual single-phase circuit monitoring in distribution boards
• Scheduled control of compatible electrical loads
• Energy-use analysis for identifying consumption patterns and managing electricity usage

Safety Features

• Installation must be carried out by a qualified professional in accordance with applicable wiring regulations. Use the meter only within its specified electrical and environmental ratings; loads disconnected by the protection function require a manual restart, and the feature does not guarantee protection against load shedding.

Frequently Asked Questions

• What electrical parameters can the MTS21 monitor?
  It can monitor voltage, current, active power, power factor and frequency in real time, while also tracking accumulated energy consumption in kWh.
• Does the MTS21 work with 5GHz Wi-Fi?
  No. The MTS21 supports 2.4GHz Wi-Fi using 802.11 b/g/n. It also includes Bluetooth connectivity for local smart control when Wi-Fi is unavailable.
• What is the maximum load rating of the MTS21?
  The MTS21 is rated for up to 65A and 9600W resistive, subject to correct installation and the connected load remaining within the specified ratings.
• Can I view and export historical energy-use data?
  Yes. The Major Tech Hub app allows custom energy-consumption date ranges of up to 2 months, and the data can be downloaded in Excel format and shared through compatible third-party apps.
• Can the MTS21 automatically disconnect a load during abnormal voltage or current conditions?
  Yes. Configurable load protection can issue alerts and disconnect the load for over-voltage, under-voltage or over-current conditions. A manual restart is required after a protection shutdown.
