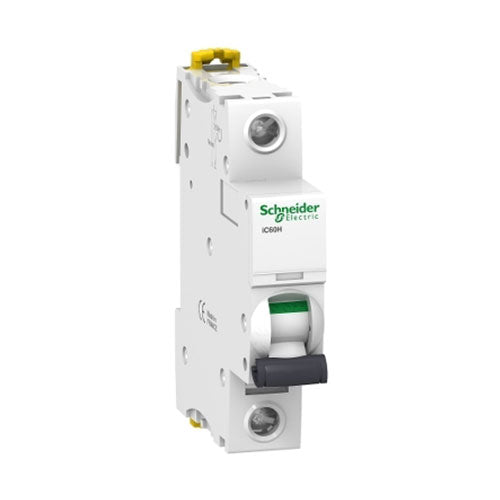

Schneider Electric Acti 9 iC60H DIN Mini Circuit Breaker C-Curve 1P


Schneider Electric Acti 9 iC60H DIN Mini Circuit Breaker C-Curve 1P
Regular price
R 376.00
Sale price
R 376.00
Regular price
Check Availability
Unit price
per


Product Description

Product Features
  • Over-voltage resistance by high level of industrial performances conception (pollution degree, rated impulse withstand voltage and insulation voltage)
  • High performance limitation
  • Fast closing independent of the speed of actuation of the toggle
  • Remote indication, open/close/tripped, by optional auxiliary contacts
  • Top or bottom electrical feeding
  • Class 2 front face
  • Promises absolute protection against electric shocks
  • iC60H circuit breakers are multi-standard circuit breakers which combine the following functions;
  • Circuit protection against short-circuit currents
  • Circuit protection against overload currents
  • Suitable for industrial isolation according to IEC/EN 60947-2, standard
  • Available from 6A to 63A

Technical Specifications
Colour: White
Material: Plastic
Handle Colour: Black
Mounting Type: DIN Rail
Poles: 1
Curve: C-Curve
Trip Unit Technology: Thermal Magnetic
Current: Available from 6A to 63A
Voltage: 220/415V
Height: 85mm
Width: 18mm
Depth: 78.5mm
Weight: 215g

Technical Documents
Technical Document: Download
