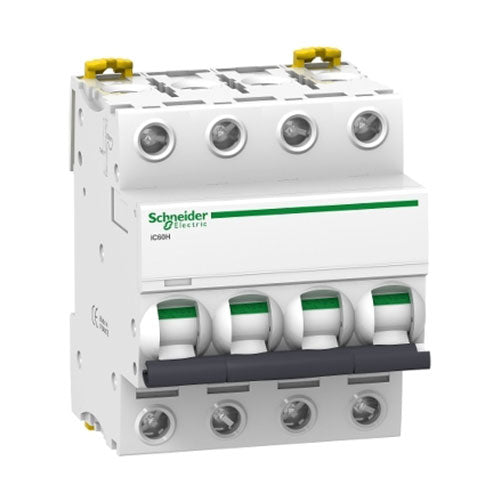

Schneider Electric Acti 9 iC60H DIN Mini Circuit Breaker C-Curve 4P
Adding product to your cart
Product Description
Product Features
- Over-voltage resistance by high level of industrial performances conception (pollution degree, rated impulse withstand voltage and insulation voltage)
- High performance limitation
- Fast closing independent of the speed of actuation of the toggle
- Remote indication, open/close/tripped, by optional auxiliary contacts
- Top or bottom electrical feeding
- Class 2 front face
- Promises absolute protection against electric shocks
- iC60H circuit breakers are multi-standard circuit breakers which combine the following functions;
- Circuit protection against short-circuit currents
- Circuit protection against overload currents
- Suitable for industrial isolation according to IEC/EN 60947-2, standard
- Available from 6A to 63A
Technical Specifications
Colour: |
White |
Material: |
Plastic |
Handle Colour: |
Black |
Mounting Type: |
DIN Rail |
Poles: |
4 |
Curve: |
C-Curve |
Trip Unit Technology: |
Thermal Magnetic |
Current: |
Available from 6A to 63A |
Voltage: |
220/415V |
Height: |
85mm |
Width: |
72mm |
Depth: |
78.5mm |
Weight: |
500g |
