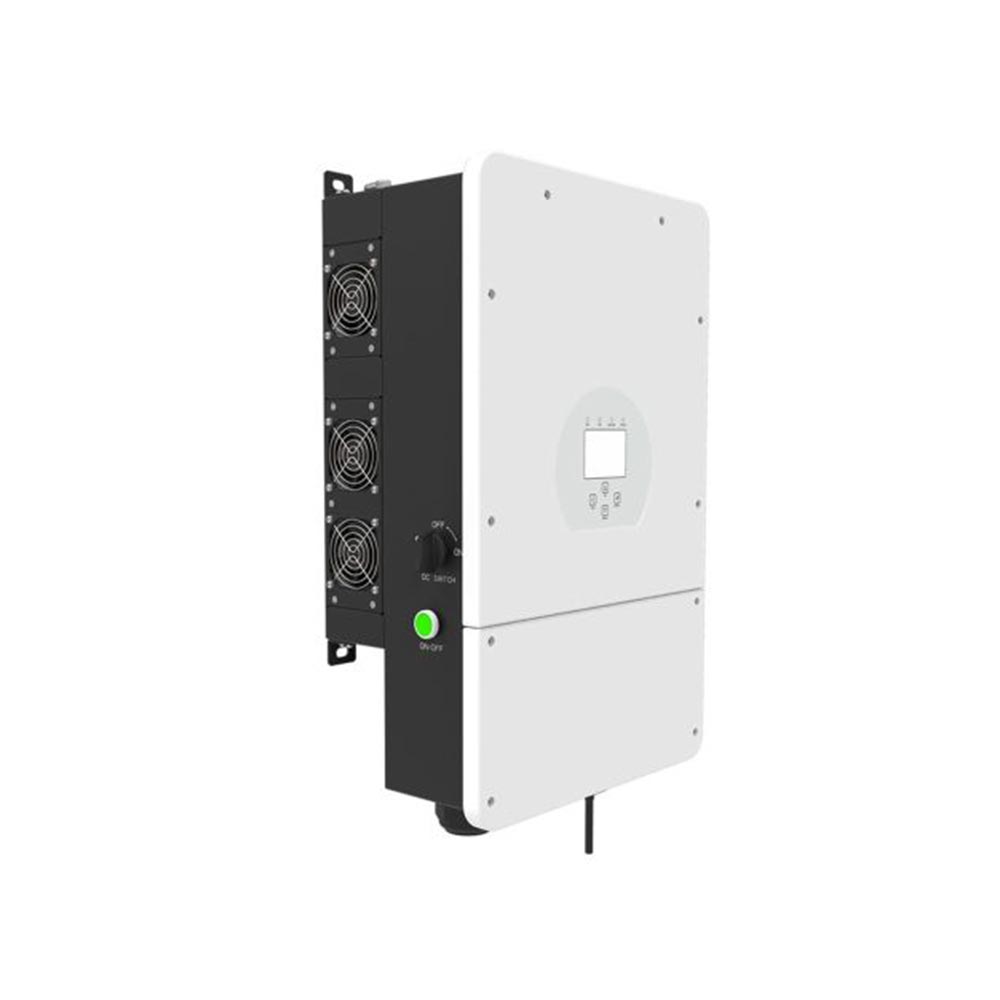

SunSynk Hybrid PV inverter Single Phase 8kW
SKU:
SS-1P-08K-H-LV
Adding product to your cart
The Sunsynk 8kW 1P Hybrid PV Inverter 48v C/W Wifi Dongle IP65 is a highly efficient power management tool that allows the user to hit those ‘parity’ targets by managing power coming from multiple sources such as solar, mains grid and generator and then effectively storing and releasing electric power as the utilities require.
Product Features
- Self consumption & feed-in to the grid
- Auto re-start while AC is recovering
- Programmable supply priority for battery or grid
- Programmable multiple operation modes; on-grid / off-grid & UPS
- Configurable battery charging – current / voltage based on applications by LCD setting
- Configurable AC / solar / generator charger priority by LCD setting
- Compatible with mains voltage or generator power
- Overload / over-temperature / short-circuit protection
- Smart battery charger designer optimised battery protection
- Limit-function installed to prevent excess power overflow to grid
- Supporting Wi-Fi monitoring and built-in 2 strings of MPP trackers
- Smart settable 3-stage MPPT charging for optimised battery performance
- Time of use function
- Smart load function
- Important: All solar products and power systems, and their components must be installed by appropriately qualified Installers to make sure that the products are safely installed and meet Local regulations and compliance
- 5 Years
Safety Features
- Grid Regulation: UL1741 ,IEEE1547, VDE-ARN 4105, VDE0126
- Safety Regulation: IEC62109-1&2, IEC62040-1
- Electromagnetic Compatibility (EMC) Standard: EN61000-6-1, EN61000-6-3, FCC 15 class B
Technical Specifications
| Colour: |
White |
| Mounting Type: |
Wall Mounted |
| Cooling Method: |
Fan |
| Battery Type: |
Lead-acid or Li-Ion |
| Battery Voltage Range: |
40V-60V |
| Waveform: |
Pure Sine Wave Inverter |
| Input Current (Max.): |
18A+9A |
| Grid Type: |
Single Phase |
| Peak Power (Off Grid): |
2 Times Rated Power for 10 Seconds |
| Power Point Tracking Range (MPPT) (Max.): |
125V-425V |
| Start-up Voltage: |
150V |
| AC Current (Max.): |
33A |
| AC Output Power (Max.): |
8000W |
| DC Input Power (Max.): |
8800W |
| Charge Current (Max.): |
190A |
| Discharge Current (Max.): |
190A |
| Charging Curve: |
3-Stage / Equalisation |
| Frequency Range: |
50, 230 Vac (Single Phase) |
| PV Input Voltage (Max.): |
500V |
| Efficiency: |
Max. Efficiency: 97.6%
Euro Efficiency: 97%
MPPT Efficiency: 99.90%
|
| Protection Type: |
PV Input Lightning Protection
Anti-islanding Protection
PV String Input Reverse Polarity Protection
Insulation Resistor Detection
Residual Current Monitoring Unit
Output Over Current Protection
Output Shorted Protection
Output Over Voltage Protection
|
| Height: |
680mm |
| Width: |
420mm |
| Depth: |
233mm |
| Operating Temperature: |
-25~60°C, >45 Derating |
| Noise Level: |
<30dB |
| IP Rating: |
IP65 (dust-tight + protected against water jets) |
| Weight: |
32kg |
