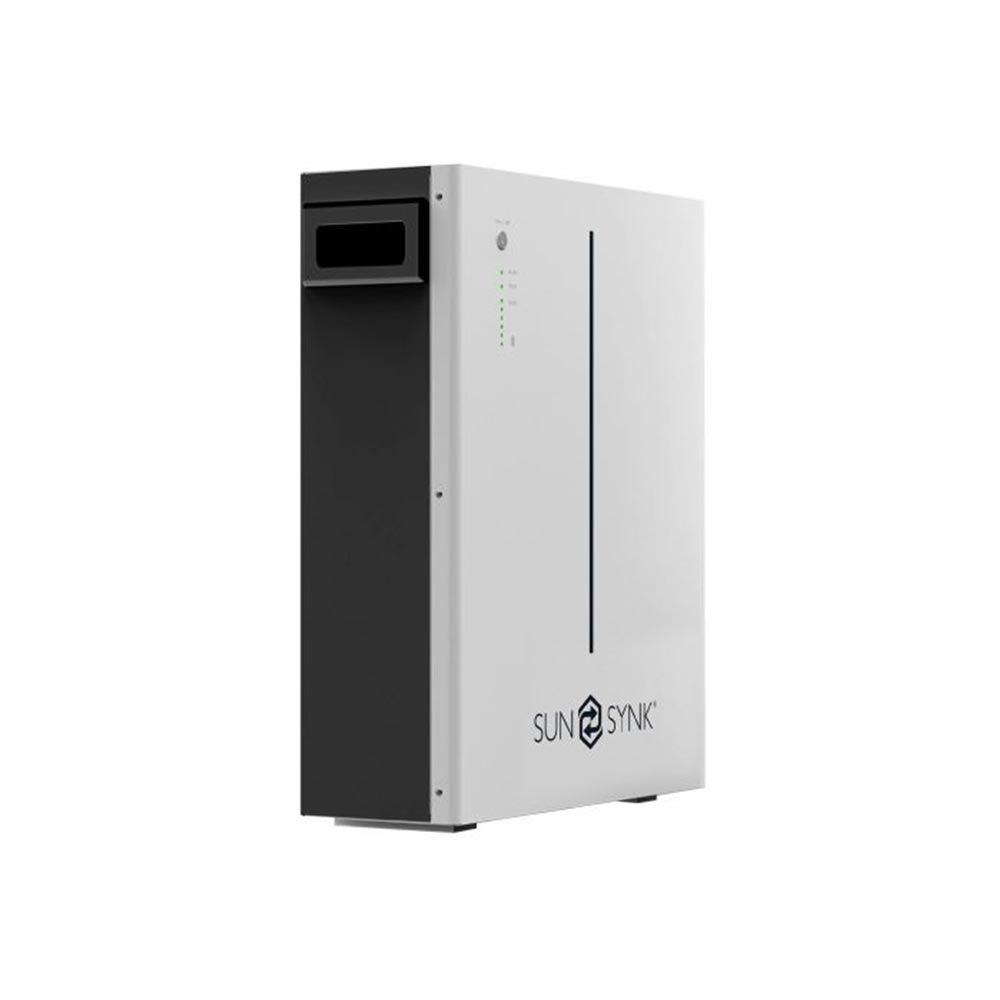

SunSynk Battery LFP Wall Mount 10.65kWh 51.2V
SKU:
SS-BAT-10K-WM-LFP
Adding product to your cart
The Sunsynk Battery LFP 10.65kWh 51.2V is made up of Lithium Ion phosphate rechargeable batteries rated at 51.2V with 10.65kWh capacity. In addition, the unit has a built-in battery management system to ensure optimal performance at all times.
Product Features
- More usable energy at 100%depth discharge
- Easy installation that can either be wall or floor mounted
- Perfectly compatible with Major PCS Brands
- Flexibile investment that is scaleble from 5.32 to 42.56kWh
- Safe and reliable premium lithium iron phosphate (LFP) 6000 cycles
Safety Features
-
Certification for Pack:- UN38.3
- IEC62619
- IEC61000
Certification for Cell:- UN38.3
- IEC62619
- UL 1642
- JET
Technical Specifications
| Colour: |
White |
| Mounting Type: |
Floor stand or Wall mounted |
| Communication Method: |
RS232
RS485
CAN
|
| Display: |
SOC status indicator
LED indicator
|
| Battery Scalability: |
Max 8 batteries in parallel |
| Battery Type: |
LiFePO4，Lithium Iron Phosphate |
| Battery Capacity: |
208Ah |
| Battery Energy: |
10650Wh |
| Cycle Life @ 100% / 80% / 50% DoD: |
6000 Cycles @ 80% DOD / 25℃ / 0.5C，60% EOL |
| Charge Power (Max.): |
10000W |
| Voltage: |
51.2V DC |
| Charge Voltage: |
55.68~56.16Vdc |
| Discharge Voltage: |
45.6-56.16 Vdc |
| Charge Current (Max.): |
200A |
| Discharge Current (Max.): |
200A |
| Short Circuit Current: |
540A |
| Discharge Power (Max.): |
10000W |
| Height: |
836mm |
| Width: |
550mm |
| Depth: |
160mm |
| Operating Temperature: |
-20℃ ~ 60℃ |
| Storage Temperature: |
≤25℃ 12 months
≤35℃ 6 months
≤45℃ 3 months
|
| IP Rating: |
IP20 (indoor use, no water protection) |
| Relative Humidity: |
<95% Relative Humidity |
| Weight: |
90kg |
