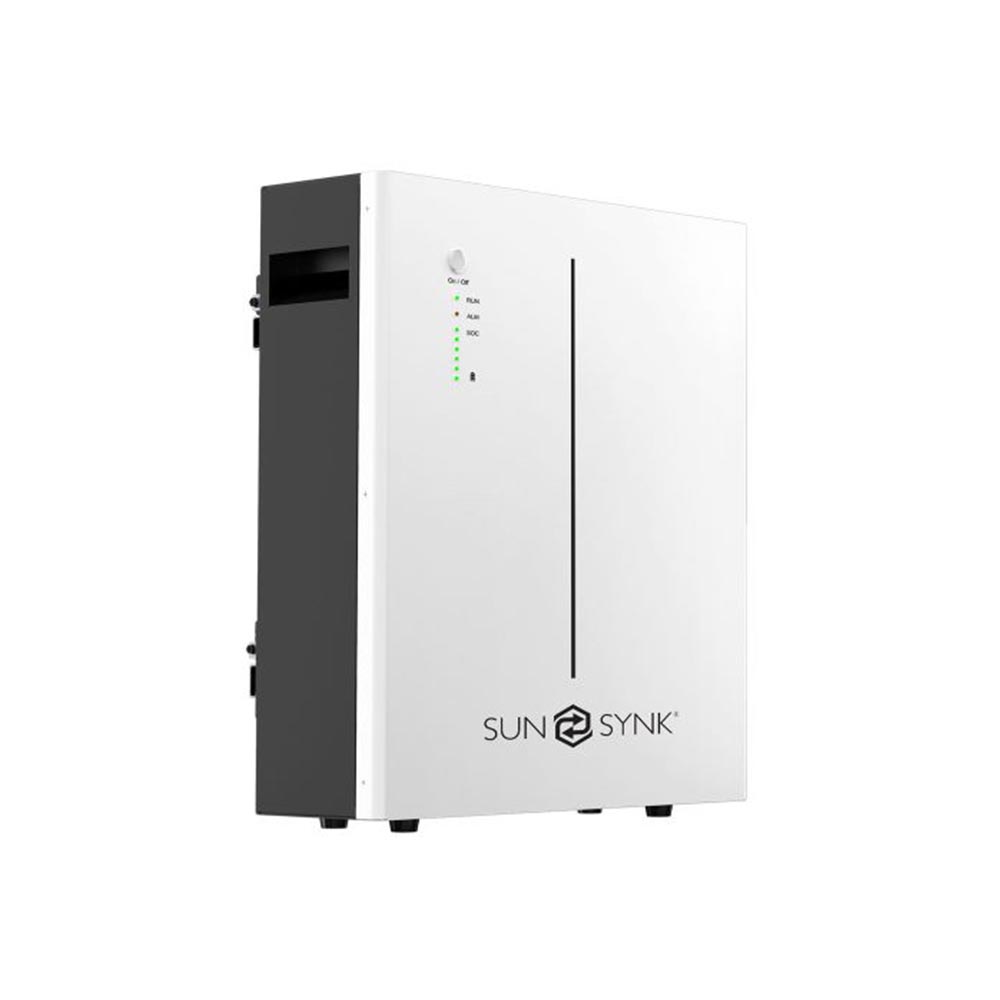

SunSynk Battery LFP Wall Mount 5.32kWh 51.2V
SKU:
SS-BAT-05K-WM-LFP
Adding product to your cart
The incredible Sunsynk Battery LFP 5.32kWh 51.2V provides an optimal power storage solution. Fitted with Lithium Ferro Phosphate rechargeable batteries and a built-in self-management system that detects abnormalities, this unit is expected to deliver every time.
Product Features
- More usable energy at 100%depth discharge
- Easy installation that can either be wall or floor mounted
- Perfectly compatible with Major PCS Brands
- Flexibile investment that is scaleble from 5.32 to 42.56kWh
- Safe and reliable premium lithium iron phosphate (LFP) 6000 cycles
- One button On/Off Automatic ID Assignment
- 5 years warranty
Safety Features
- Certification:
- IEC62619
CE:- UN38.3
Technical Specifications
| Colour: |
White |
| Mounting Type: |
Wall Mounted or 19-inch standard cabinet |
| Battery Scalability: |
Max 32 pcs in parallel (163.8kWh) |
| Battery Type: |
LifePO4 |
| Battery Capacity: |
100Ah |
| Battery Energy: |
5.12kWh |
| Cycle Life @ 100% / 80% / 50% DoD: |
≥6000(25±2ºC,0.5C/0.5C,70%EOL) |
| Display: |
5 LED (SOC 20%~100%)
3 LED (working, alarming, protecting)
|
| Communication Method: |
CAN2.0
RS485
|
| Charge Current (Max.): |
100A |
| Discharge Current (Max.): |
100A |
| Nominal Voltage: |
51.2V |
| Operating Voltage: |
43.2~57.6V |
| Height: |
640mm |
| Width: |
440mm |
| Depth: |
140mm |
| Operating Temperature: |
Charge: 0ºC~55ºC
Discharge: -20ºC~55ºC
|
| Storage Temperature: |
0ºC~35ºC |
| IP Rating: |
IP65 (dust-tight + protected against water jets) |
| Weight: |
50kg |
Technical Documents
