Product Description
Product Features
- Requires a minimum water pressure of 25 kPa (e.g. from a gravity fed water tank on an elevated stand 2,5m above the water outlet)
- Also suitable for use with a municipal mains water supply (typically 200-400 kPa)
- Supplies 10 litres of hot water per minute (maximum hot water temperature is 250Cabove the cold water temperature
- Suitable for one outlet (e.g. kitchen sink or hand basin)
- Type D - outdoor installation only
- Gas consumption: 1,55 kg/h
- LP Gas only (not for use with Natural Gas)
- Includes Flue pipe
- This appliance may only be installed by a registered LP Gas installer
- 1 Year Guarantee
Application
- Suitable for one shower outlet
What's in the Box

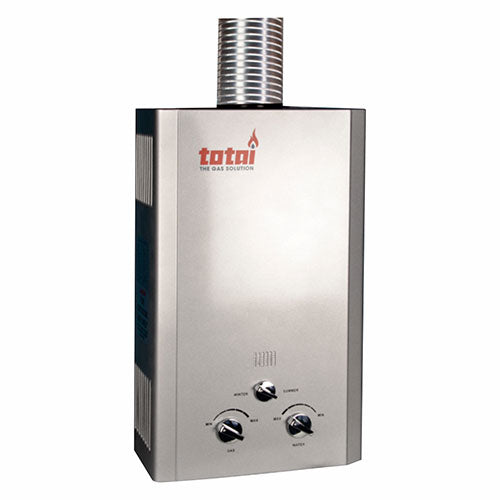

- 1 x Gas Geyser
- 1 x Aluminium Flue Pipe
Technical Specifications
| Colour: |
Silver |
| Finish: |
Powder Coated |
| Material: |
Mild Steel |
| Model Type: |
Type D - Outdoor |
| Gas Type: |
LPG |
| Ignition Type: |
Automatic |
| Gas Consumption: |
1.5kg/h |
| Heat Input: |
70.5 MJ/h |
| Operating Pressure: |
2.8kPa |
| Water Pressure: |
25 - 800 kPa (0,25 bar-8 bar) |
| Water Pressure (Min.): |
1.5 Bar |
| Water Pressure (Max.): |
8 Bar |
| Rated Output: |
10L/Min |
| Height: |
630mm |
| Width: |
390mm |
| Depth: |
245mm |
| Flue Diameter: |
110mm |
