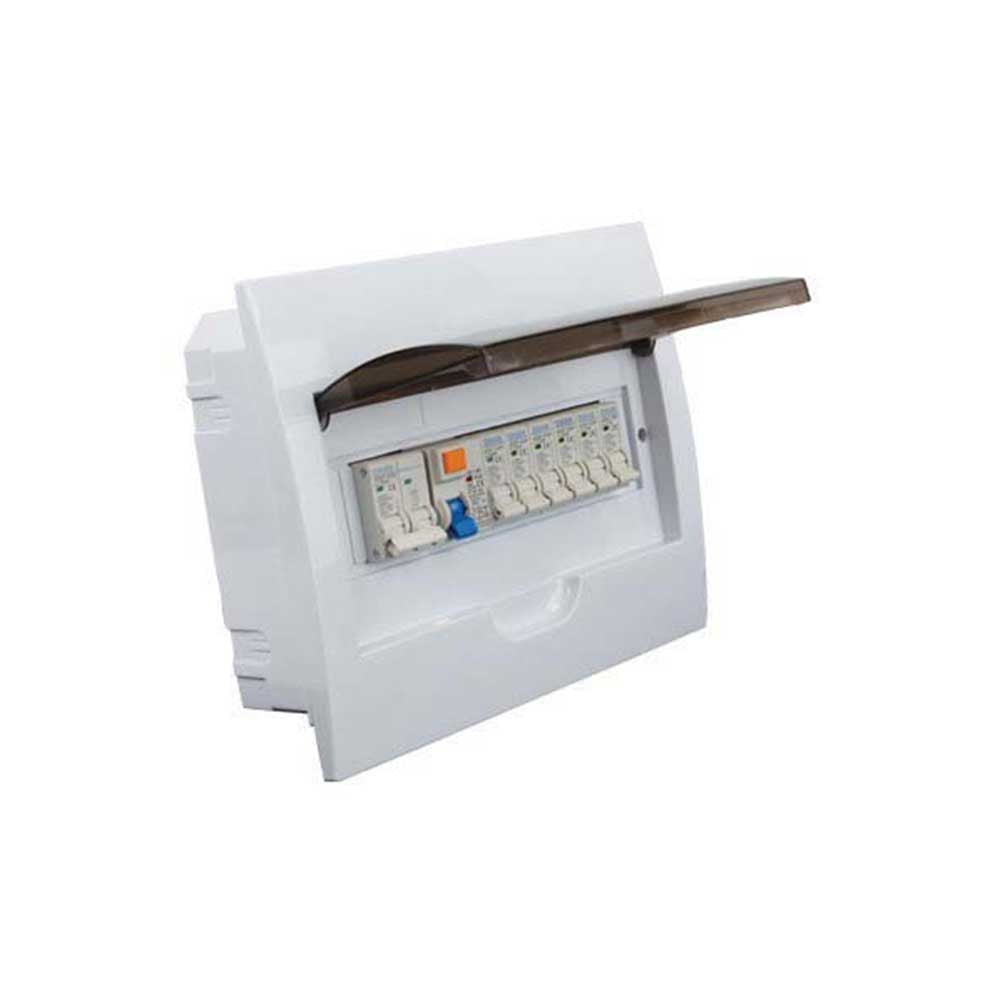

Tradeprice 12-Way DIN Flush Mount PVC Distribution Board + MCB Kit

Product Features

• 12-way DIN rail distribution board for up to 12 modular devices
• Flush-mounted design for a neat, recessed installation
• White PVC enclosure for indoor electrical distribution
• IP40 rated for protection against solid objects larger than 1mm; no water protection
• Suitable for standard DIN-mounted devices such as MCBs, earth leakage devices, isolators and surge protection modules
• Supplied with a 63A 2-pole main switch isolator and 63A 2-pole earth leakage device
• Includes 3 kA single-pole MCBs in the ratings listed in the box contents
• Pre-bundled kit reduces the need to source the basic distribution-board components separately
• Includes Circuit Breakers
• 1 Year Warranty

Application

• Residential electrical distribution and sub-distribution
• Small commercial electrical installations
• Offices, shops and service areas
• New builds, renovations and finished-wall installations
• Indoor auxiliary and sub-distribution boards

What's in the Box

• 1 x 12-Way Flush Mount PVC Distribution Board
• 1 x Main Switch Isolator 2P 63A
• 1 x Earth Leakage 2P 63A
• 2 x Circuit Breakers 1P 3 kA 10A
• 2 x Circuit Breakers 1P 3 kA 20A
• 1 x Circuit Breaker 1P 3 kA 32A

Safety Features

• Installation and maintenance must be carried out by a suitably qualified electrician. Isolate the electrical supply before working on the distribution board. IP40 provides no water protection, so install the enclosure indoors or in a suitably protected location away from moisture.

Frequently Asked Questions

• What does 12-way mean on this distribution board?
  It means the board provides space for up to 12 DIN modules. The number of individual circuits that can be fitted depends on the width of the devices used.
• Does this distribution board include circuit breakers?
  Yes. This kit includes the main switch isolator, earth leakage device and the circuit breakers listed in the box contents.
• Can this IP40 distribution board be installed outdoors?
  No. IP40 provides protection against solid objects but no protection against water. Install it indoors or in a suitably protected dry location.
