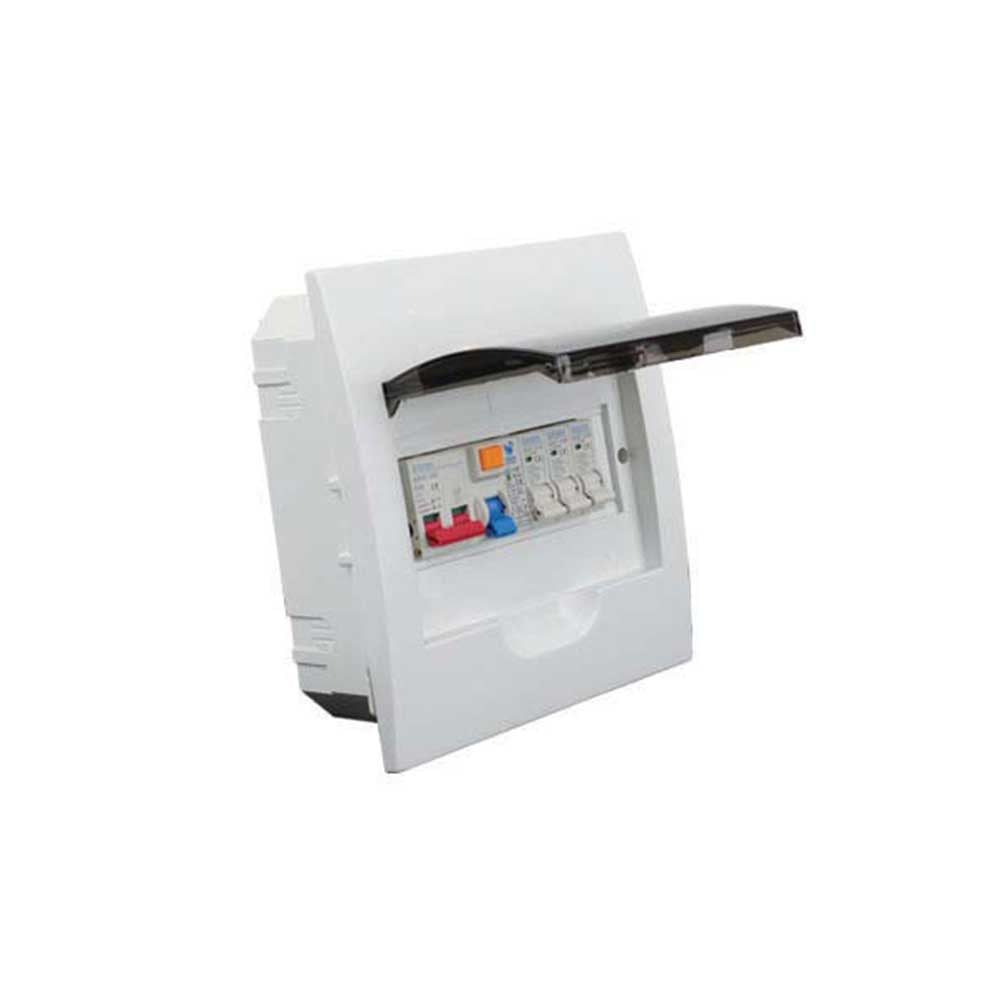

Tradeprice 8-Way DIN Surface Mount PVC Distribution Board + MCB Kit
SKU: DB8DSP+KITProduct Information
This 8-Way DIN Surface Mount PVC Distribution Board provides a practical enclosure for organising and housing modular circuit protection and control devices in indoor electrical installations. The surface-mounted format is well suited to retrofits, additions and installations where recessing the board into a wall is impractical. Its IP40 enclosure accommodates up to 8 DIN modules and is supplied as a convenient kit with the listed main switch, earth leakage device and circuit breakers.
Product Features
- 8-way DIN rail distribution board for up to 8 modular devices
- Surface-mounted design for straightforward wall installation without recessing
- White PVC enclosure for indoor electrical distribution
- IP40 rated for protection against solid objects larger than 1mm; no water protection
- Suitable for standard DIN-mounted devices such as MCBs, earth leakage devices, isolators and surge protection modules
- Supplied with a 63A 2-pole main switch isolator and 63A 2-pole earth leakage device
- Includes 3 kA single-pole MCBs in the ratings listed in the box contents
- Pre-bundled kit reduces the need to source the basic distribution-board components separately
- Includes Circuit Breakers
- 1 Year Warranty
Application
- Residential electrical distribution and sub-distribution
- Small commercial electrical installations
- Offices, shops and service areas
- Retrofit, renovation and exposed-conduit installations
- Indoor auxiliary and sub-distribution boards
What's in the Box
- 1 x 8-Way Surface Mount PVC Distribution Board
- 1 x Main Switch Isolator 2P 63A
- 1 x Earth Leakage 2P 63A
- 1 x Circuit Breaker 1P 3 kA 10A
- 1 x Circuit Breaker 1P 3 kA 20A
Safety Features
- Installation and maintenance must be carried out by a suitably qualified electrician. Isolate the electrical supply before working on the distribution board. IP40 provides no water protection, so install the enclosure indoors or in a suitably protected location away from moisture.
Frequently Asked Questions
-
What does 8-way mean on this distribution board?
It means the board provides space for up to 8 DIN modules. The number of individual circuits that can be fitted depends on the width of the devices used. -
Does this distribution board include circuit breakers?
Yes. This kit includes the main switch isolator, earth leakage device and the circuit breakers listed in the box contents. -
Can this IP40 distribution board be installed outdoors?
No. IP40 provides protection against solid objects but no protection against water. Install it indoors or in a suitably protected dry location.
Technical Specifications
| Colour: | White |
| Material: | PVC |
| Mounting Type: | Surface Mount |
| Number of Modules: | 8-Way |
| Height: | 195mm |
| Width: | 182mm |
| Depth: | 85mm |
| IP Rating: | IP40 (indoor use; protection against solid objects over 1mm; no water protection) |
