Tradeprice Weatherproof Isolator 2P 20A

Product Features

• IP65-rated weatherproof enclosure for indoor and outdoor installation
• 2-pole isolator rated at 20A, 500V AC and 50/60Hz
• AC22a/AC23a utilisation category
• Padlockable handle accepts a 6mm padlock for added isolation security
• Dual 25mm screwed cable entries at the top and bottom for flexible routing
• 25mm-to-20mm screw reducers included for conduit compatibility

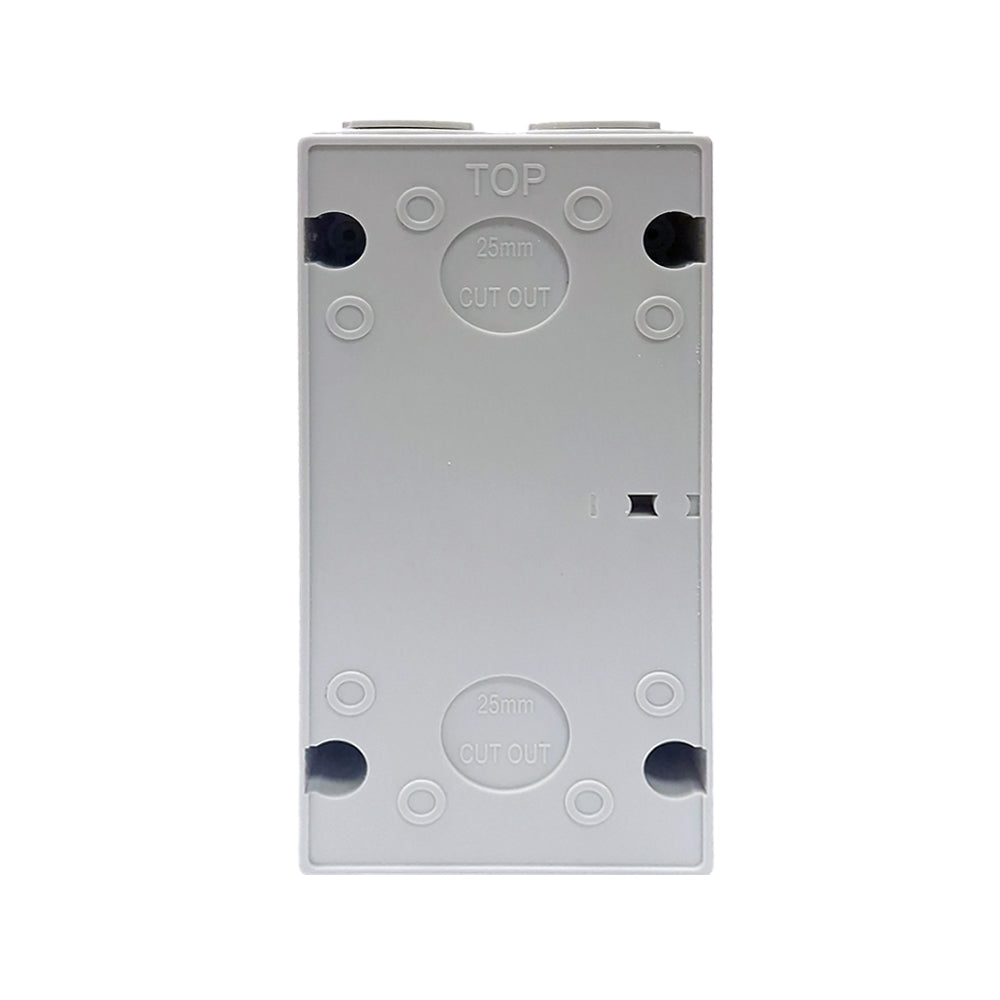

• 2 x 25mm rear knockouts provide additional cable-entry options
• Large terminals accommodate conductors up to 25mm²
• Quick-fit cover with fixed earth and neutral bars for easier installation
• Approved to IEC 60669
• 1 Year Warranty

Application

• Single-phase equipment isolation
• Outdoor electrical isolation points
• Air-conditioning and HVAC equipment
• Pumps, fans and fixed electrical equipment
• Residential, commercial and workshop installations

What's in the Box

• 1 x Weatherproof Isolator 2P 20A

Safety Features

• Installation and electrical connection must be carried out by a qualified electrician. Isolate the supply before installation or servicing and correctly seal all cable entries to maintain the IP65 rating.

Frequently Asked Questions

• Is this isolator suitable for outdoor installation?
  Yes. The IP65-rated enclosure is designed for indoor and outdoor installations when correctly installed and sealed.
• Can this isolator be padlocked?
  Yes. The handle accepts a 6mm padlock for added isolation security.
• What cable entry options does it provide?
  It has dual 25mm screwed entries at the top and bottom, includes 25mm-to-20mm screw reducers, and provides 2 x 25mm rear knockouts for additional cable entry.
