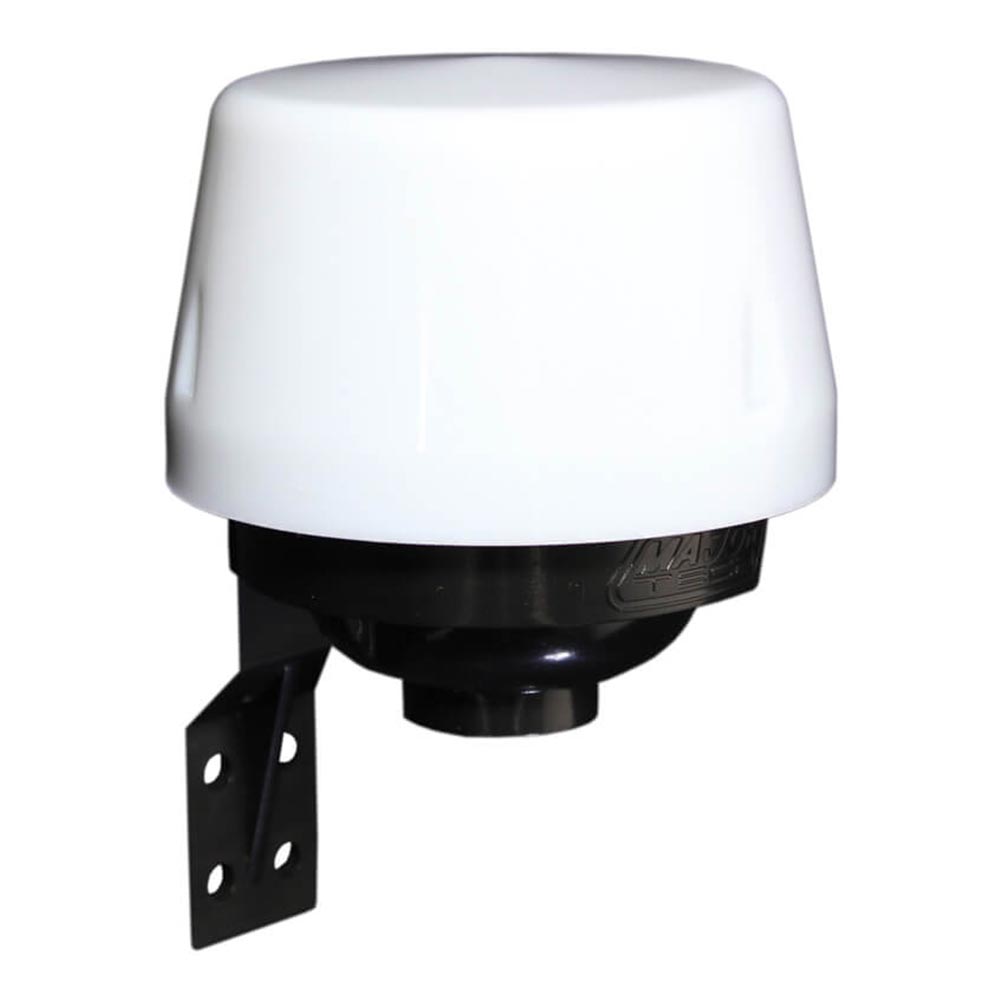

VETi Day/Night Sensor 10A

Product Features

• Automatically switches connected lighting ON at dusk and OFF at dawn
• 10A rated current
• Adjustable ambient light setting from 5 to 50 lux
• 220 to 240V AC operating voltage
• 50/60Hz operating frequency
• IP54-rated housing for outdoor installation
• Compatible with LED, incandescent, fluorescent, quartz and halogen lighting
• Suitable for wall or pole mounting
• IP68-rated cable gland protects the wiring entry point
• Integrates into new or existing lighting installations
• 5 Year Limited Warranty

Application

• Outdoor and security lighting
• Entrances and gates
• Offices and commercial premises
• Warehouses and light-industrial areas
• Garden, pathway and perimeter lighting

What's in the Box

• 10A Day/Night Sensor
• Mounting Bracket
• Mounting Screws
• Cable Gland
• Instruction Manual

Safety Features

• Installation and electrical connection must be carried out by a qualified electrician with the supply isolated. Install where the sensor can detect natural ambient light and do not submerge the IP54 housing.

Frequently Asked Questions

• How does the day/night sensor work?
  It monitors the surrounding light level and automatically switches connected lighting on at dusk and off at dawn.
• Can I adjust when the lights switch on?
  Yes. The ambient light threshold is adjustable from 5 to 50 lux.
• Is the sensor suitable for outdoor use?
  Yes. The sensor housing is IP54 rated for outdoor installation and the supplied cable gland is IP68 rated. It is not designed for submersion.
• What lighting types are compatible?
  Major Tech lists LED, incandescent, fluorescent, quartz and halogen lighting as compatible, provided the connected load remains within the 10A rating.
• Where can the sensor be mounted?
  The DNS10 can be mounted on walls or poles and should be positioned where natural ambient light can reach the sensor.
