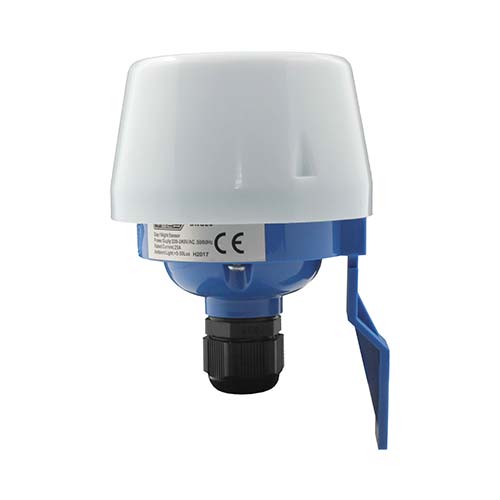

VETi Day/Night Control Switch 25A

Product Features

• Automatically switches connected lighting ON at dusk and OFF at dawn
• 25A rated current for higher-load lighting circuits
• Adjustable ambient light setting from 5 to 50 lux
• 220 to 240V AC operating voltage
• 50/60Hz operating frequency
• IP54-rated housing for outdoor installation
• Compatible with LED, incandescent, fluorescent, quartz and halogen lighting
• Suitable for wall or pole mounting
• IP68-rated cable gland protects the wiring entry point
• Integrates into new or existing lighting installations
• 5 Year Limited Warranty

Application

• Outdoor and security lighting
• Entrances and gates
• Warehouses and industrial areas
• Commercial exterior lighting
• Street, pathway and perimeter lighting

What's in the Box

• 25A Day/Night Control Switch
• Mounting Bracket
• Mounting Screws
• Cable Gland
• Instruction Manual

Safety Features

• Installation and electrical connection must be carried out by a qualified electrician with the supply isolated. Install where the sensor can detect natural ambient light and do not submerge the IP54 housing.

Frequently Asked Questions

• What does the day/night switch do?
  It automatically switches connected lighting on when ambient light falls at dusk and switches it off again at dawn.
• Can the switching light level be adjusted?
  Yes. The ambient light setting can be adjusted from 5 to 50 lux to suit the installation.
• Is it suitable for outdoor installation?
  Yes. The housing is IP54 rated for outdoor installation and the supplied cable gland is IP68 rated at the wiring entry point. The unit must not be submerged.
• What types of lights can it control?
  Major Tech lists compatibility with LED, incandescent, fluorescent, quartz and halogen lighting, provided the connected load remains within the 25A rating.
• Can it be mounted on a wall or pole?
  Yes. The DNS25 is designed for wall or pole mounting.
