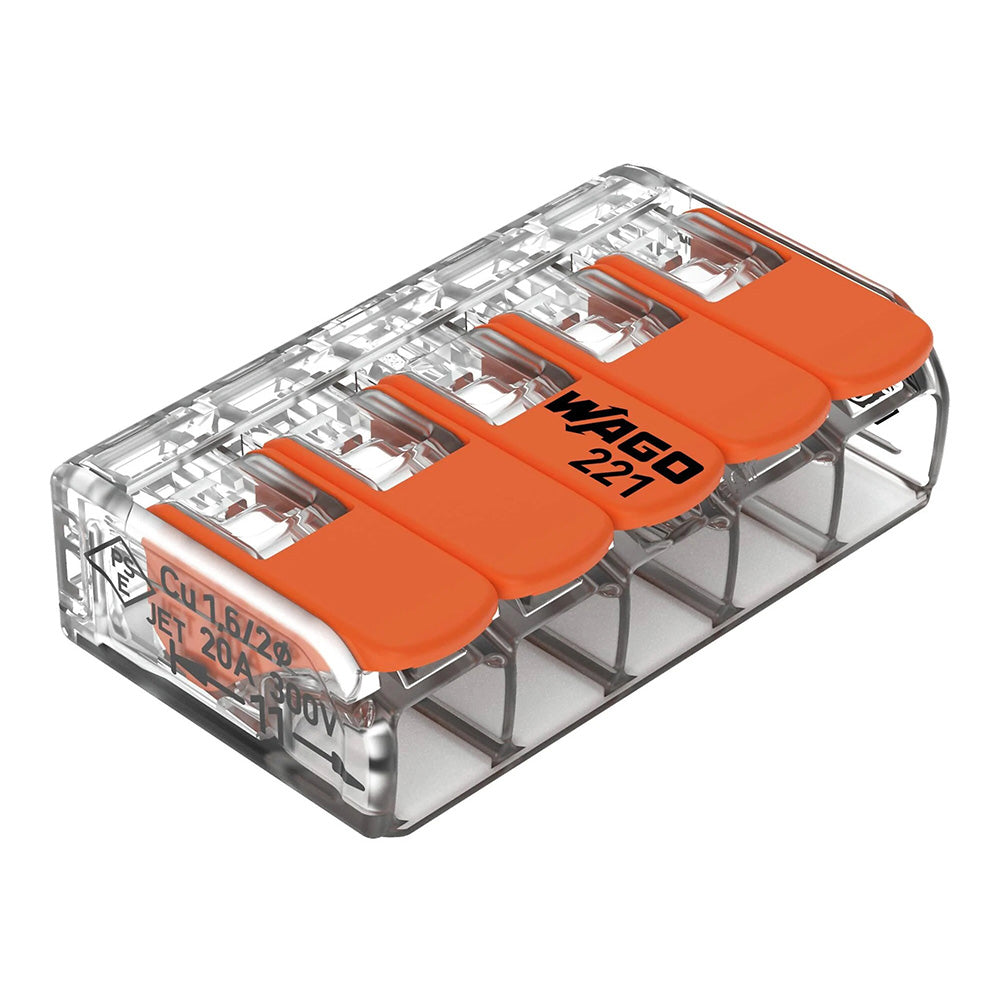

Wago 221 Lever Type 5 Way Splicing Connector 0.14 - 4mm² - Orange
Pickup available at Livecopper Store Northgate
Usually ready in 24 hours
Wago 221 Lever Type 5 Way Splicing Connector 0.14 - 4mm² - Orange
-
Livecopper Store Northgate
Pickup available, usually ready in 24 hoursunit 1, 10 Gold Street
Northgate Business Park
Cape Town
Western Cape
7405
South Africa -
Livecopper Store Pietermaritzburg
Pickup available, usually ready in 2 hours19 Halstead Road
Pietermaritzburg
KwaZulu-Natal
3212
South Africa
Product Description
Product Video
Product Features
- The slim design promotes easy installation in tight spaces
- Tool-free connection and disconnection thanks to convenient lever technology
- Connect solid, stranded, and fine stranded conductors
- Transparent housing for visual inspection
Application
- Electrical installations
- Lighting fixtures
- Control Wiring
Safety Features
- RoHS Compliance Status: Compliant, No Exemption
Technical Specifications
Colour: | Transparent / Orange |
Material: | Polycarbonate |
Pack Size: | 1 Piece |
Connections: | 5 Way |
Surge Voltage: | 4kV |
Voltage: | IEC/EN: 450V / UL 1059: 600V |
Height: | 8.6mm |
Width: | 30mm |
Depth: | 18.8mm |
Strip Length: | 11mm |
Connection Size: | Solid Conductor: 0.2 - 4mm² / Stranded Conductor: 0.2 - 4mm² / Fine-stranded Conductor: 0.14 - 4mm² |
Operating Temperature: | 105°C |
Ambient Temperature: | +85°C |
Weight: | 4g |
