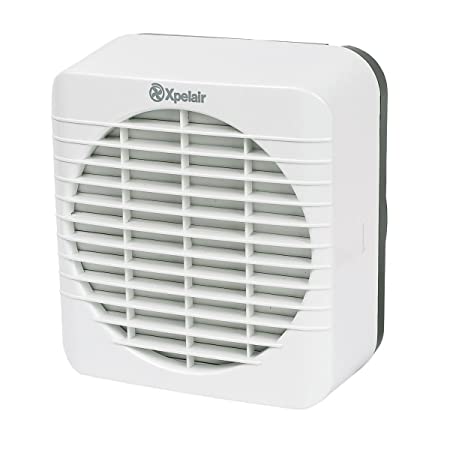

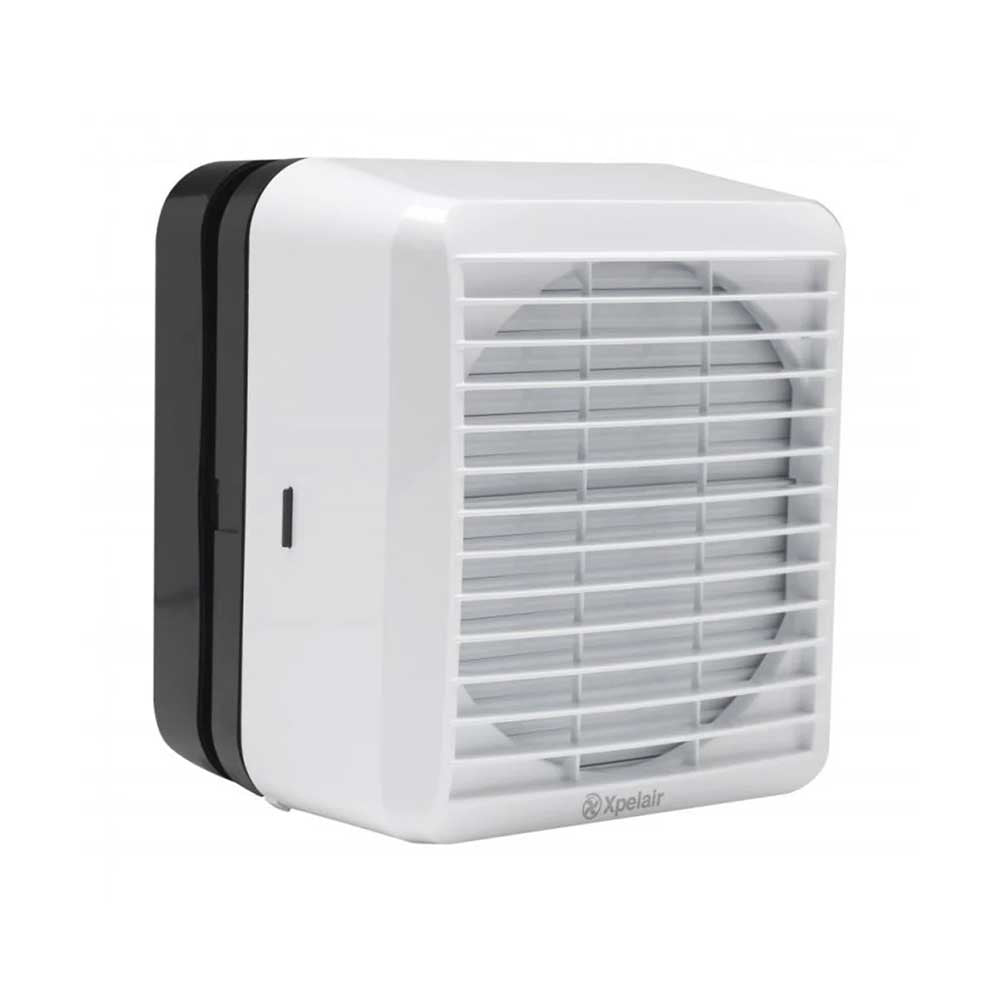

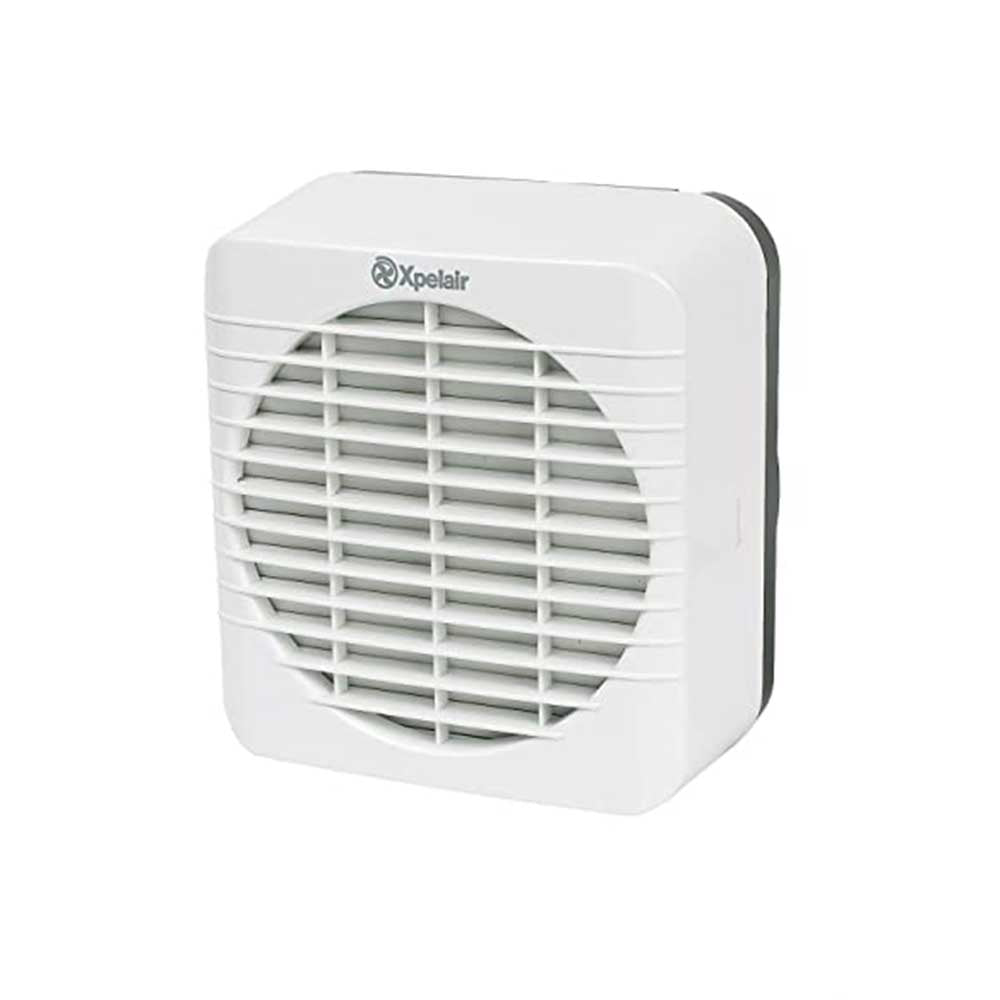

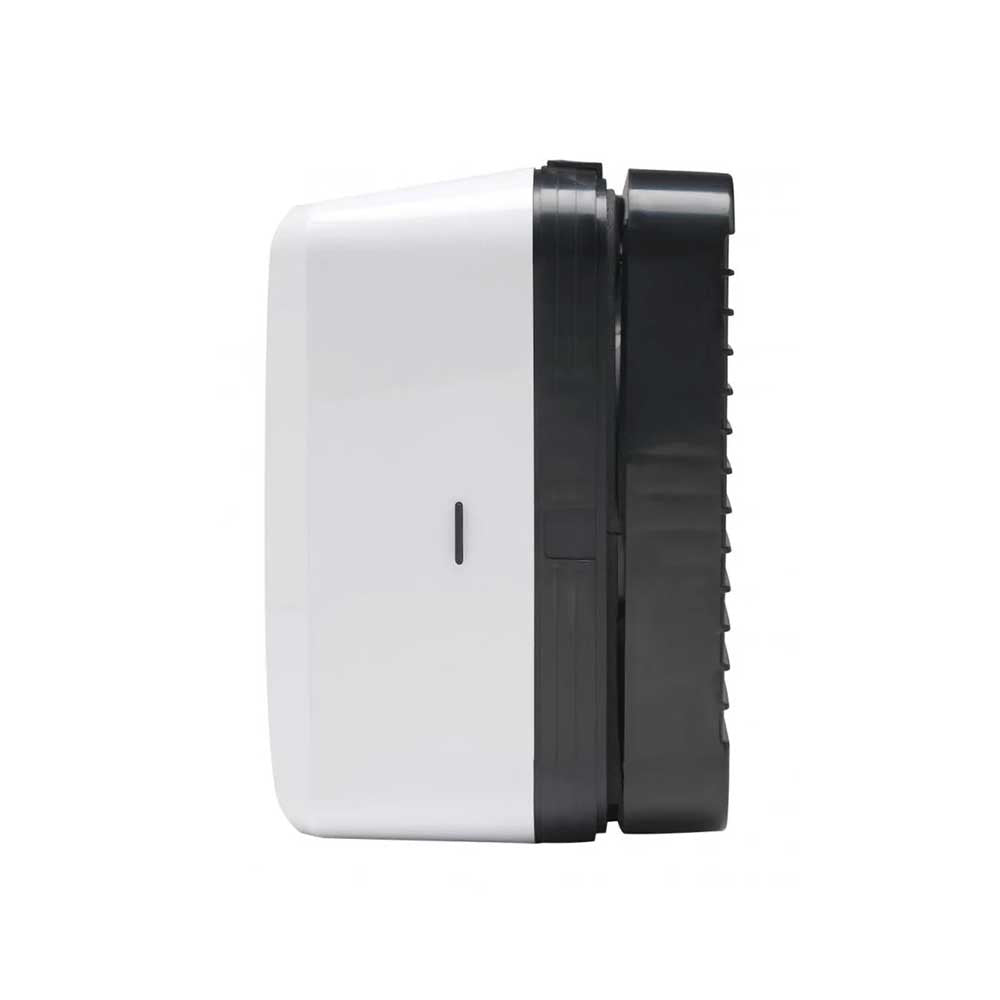

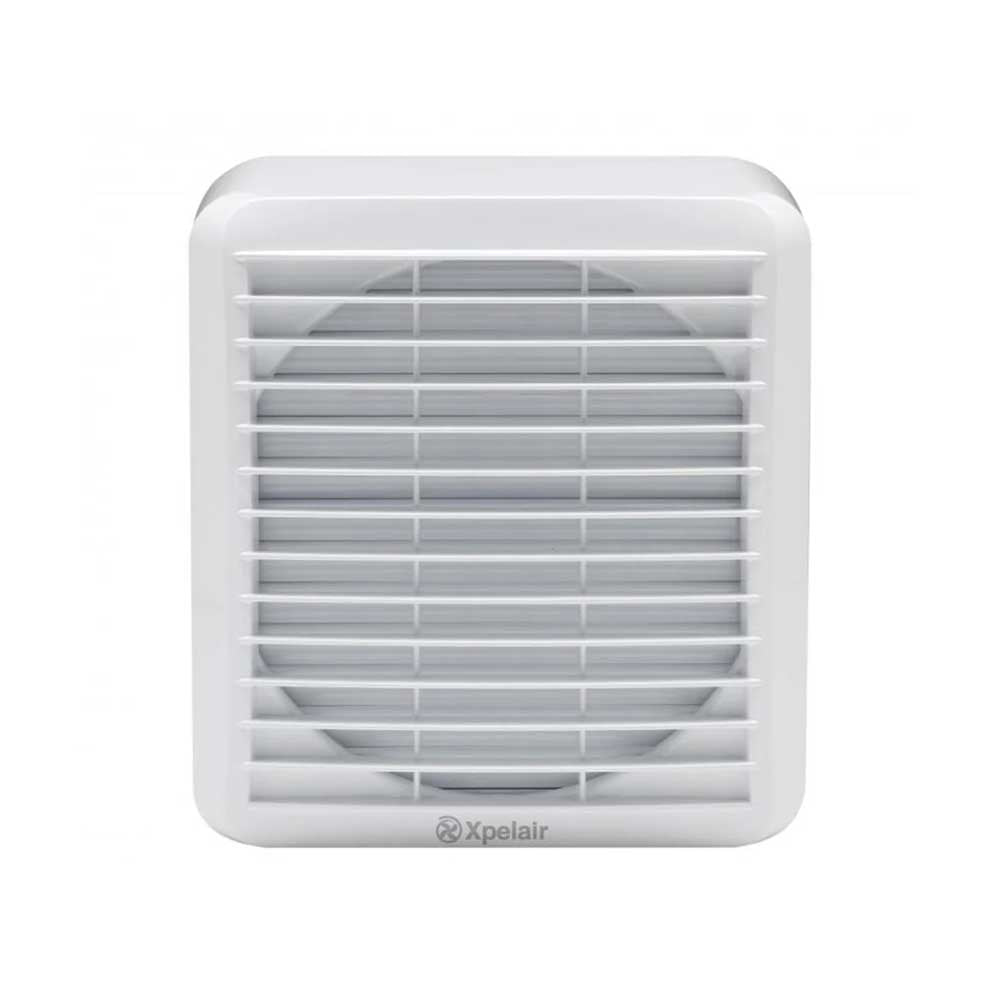

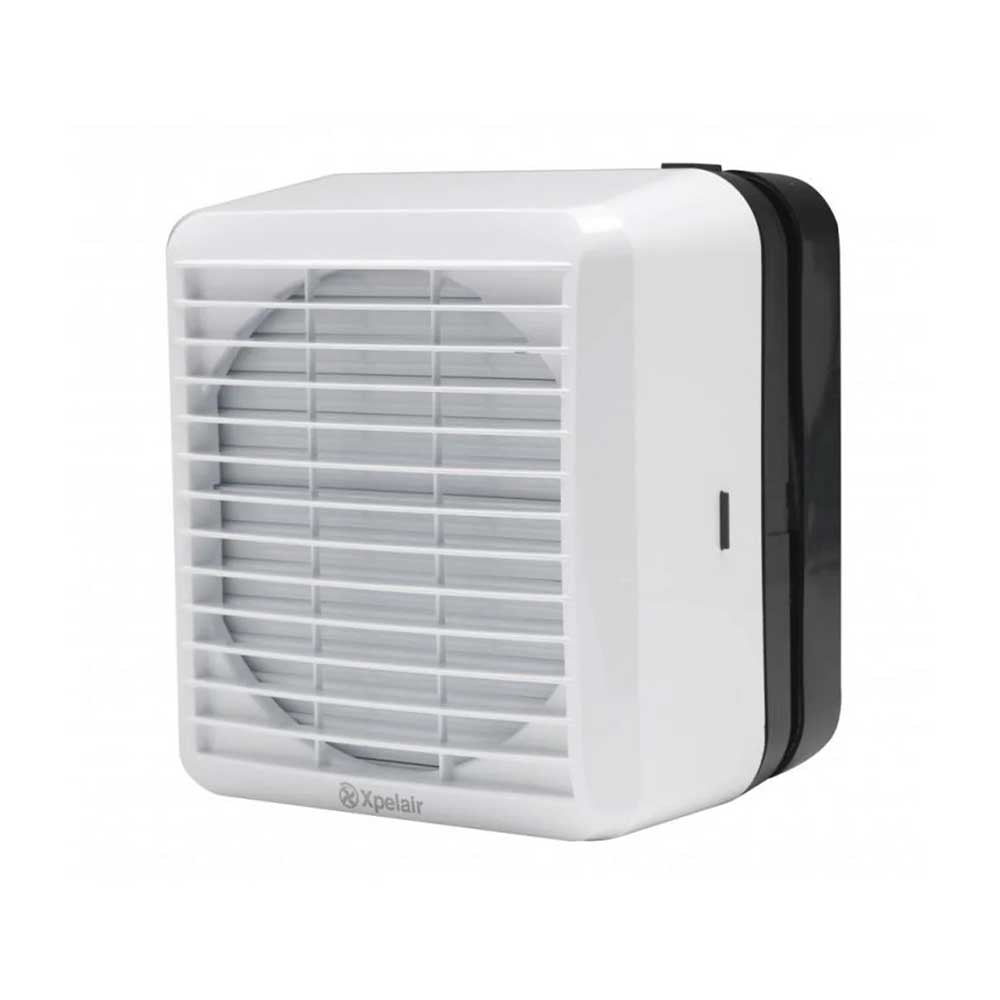

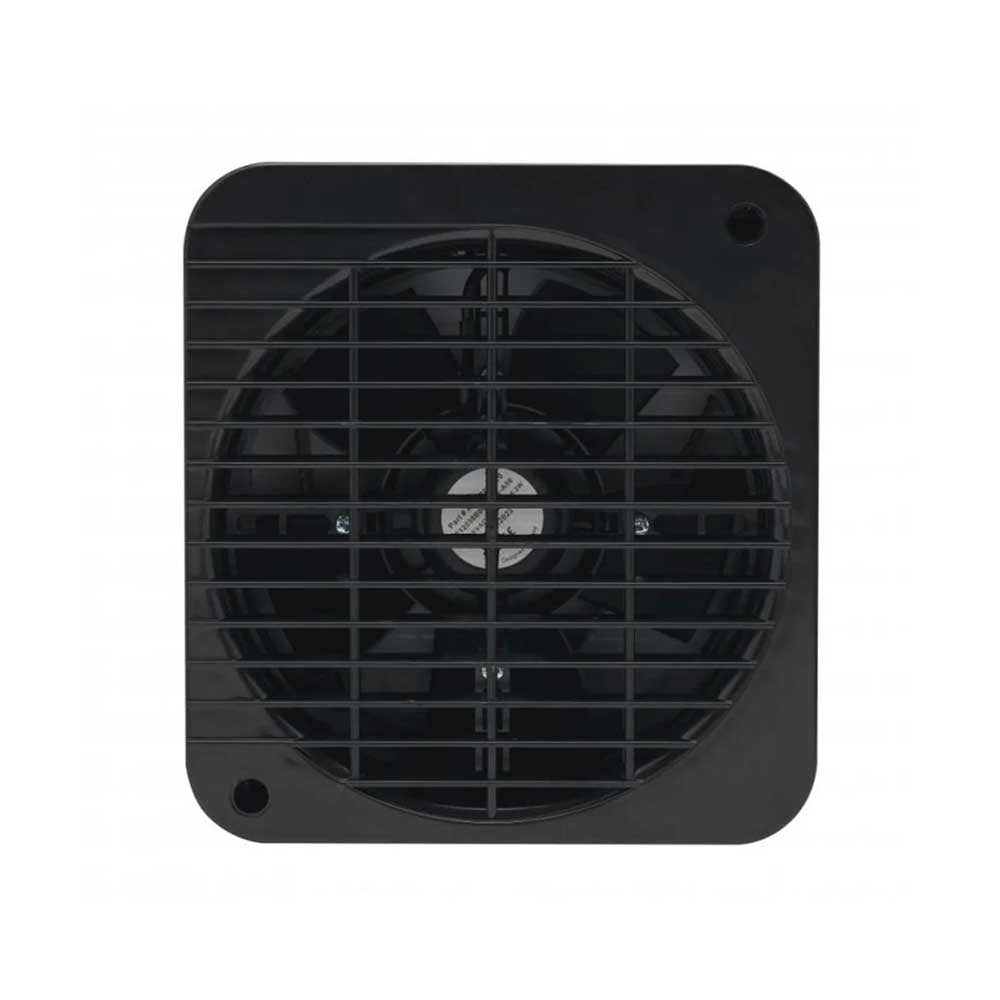

Xpelair GX 6 Window/Surface Extractor Fan 226mm
SKU: GX 6 ECProduct Information
The GX6EC Fan is purpose designed for use in kitchens and utility rooms. The fan can be window or panel mounted as supplied or wall-mounted using an optional wall kit. The product comes complete with a silent electro-thermal shutter. The fan has a low watt EC motor with extremely low power consumption and therefore low running costs.
A trickle ventilation facility is available for background ventilation when not in use.
Product Features
- Single speed extract rate of 229m3/hr
- Low Watt EC motor giving low running costs
Silent electro-thermal shutter
- Low noise level of 34dBA @ 3m
- Class B insulation for operation inambient temperatures up to 40°Cand are fitted with a thermal cutout.
- Installation in a 25mm window orpanel using standard metal ladderstrips
- If installed in panels or wallsthicker than 25mm, then useGXL20/50 extended ladder stripsto enable connection of outergrille to inside of fan.
- Pre-balanced impellers eliminate“fan judder” and ensure quiet,trouble-free operation. Sealed forlife, maintenance free bearingsensure suitability for running atany angle. Running costs areimpressively low, and when not inuse the silent electro-thermalshutter closes silently againstbackdraughts
- 5 Year guarantee
Application
Pubs
Restaurants
Offices
Factories
Schools
Shops
Technical Specifications
| Colour: | White |
| Finish: | Matt |
| Material: | Plastic |
| Mounting Type: | Wall, Window or Ceiling Mount |
| Shape: | Square |
| Motor Type: | EC |
| Speed Settings: | 1 |
| Flow Rate: | 64L/s / 229m³/h |
| Timeout Delay: | DT20 |
| Wattage: | 9.5W |
| Voltage: | 120-230V, 50/60Hz |
| Height: | 226mm |
| Width: | 210mm |
| Depth: | 148mm |
| Duct Size: | 184mm |
| Ambient Temperature: | 40° |
| Noise Level: | 34dB @ 3m |
| Insulation Class: | Class 2 |
| IP Rating: | IPX4 (protected against splashing water from any direction) |
| Relative Humidity: | mXRH Controller |
| Weight: | 1.4kg |
