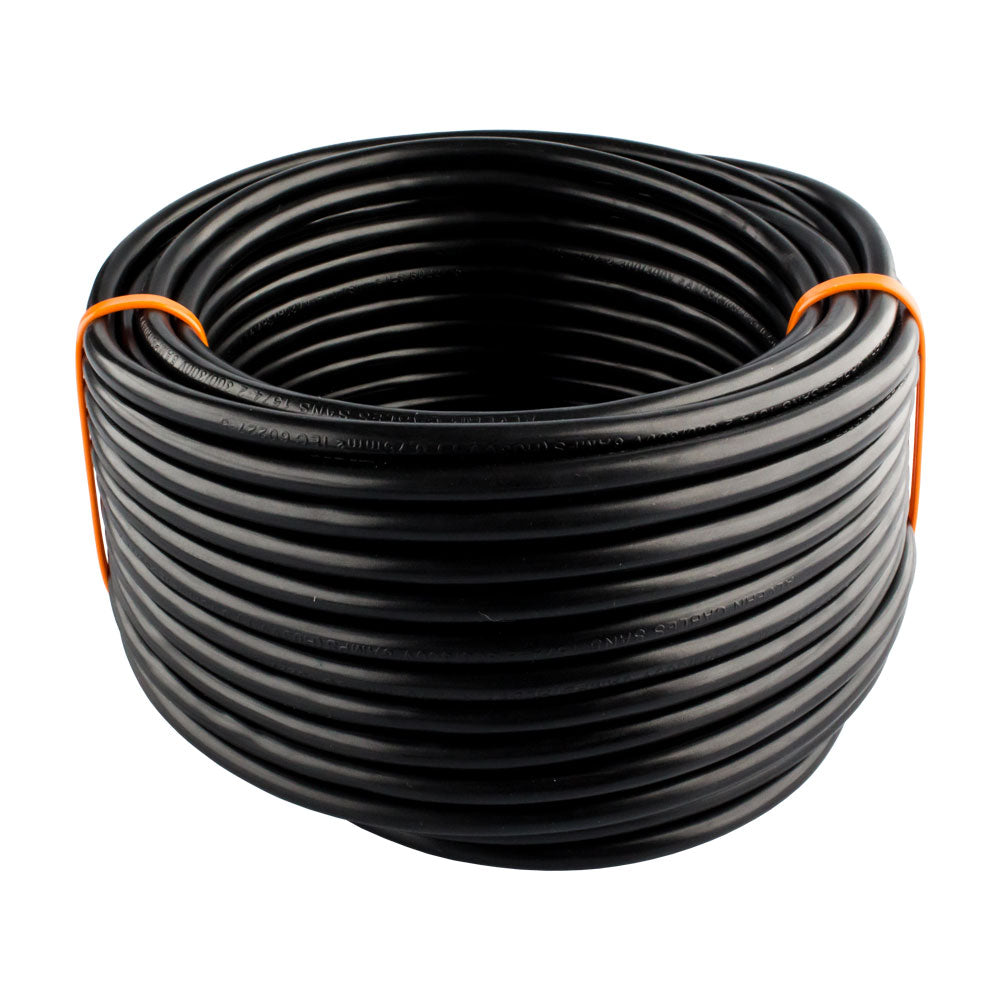

Prepack Cabtyre Cable 0.75mm x 3 Core Black 10 to 100m

Livecopper CableSKU: PPCAB075310B

Length: 10m
R 93
In stock
Livecopper Sales person smiling at the camera

Product Information

Product Features

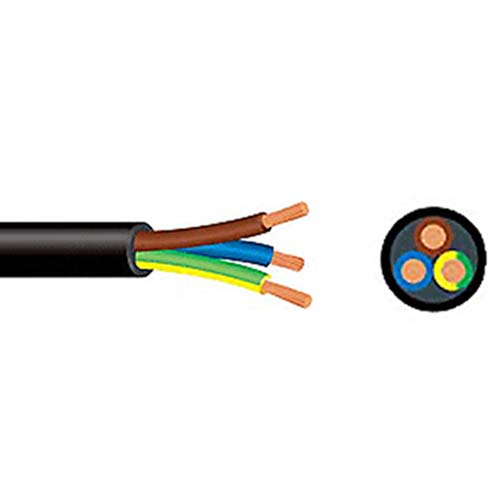

  • High conductivity bunched plain flexible copper conductors. Cores are twisted together and sheathed with a flexible grade PVC.
  • Light duty
  • Primarily used for extension cords

Technical Specifications
Colour: Black
Material: PVC
Number of cores: 3
Assumed ambient air temperature: 30°C
Assumed maximum conductor temperature: 70°C
Phase conductor size: 0.75mm²
Current rating: 1Ø: 6A / 3Ø : 6A
Conductor resistance @ 20°C Maximum: 26 ohm/km
Voltage drop: 1Ø: 62 mV/A/m / 3Ø : 54 Mv/A/m
Voltage: 300 - 500V
Length: Available in 10 to 100m
