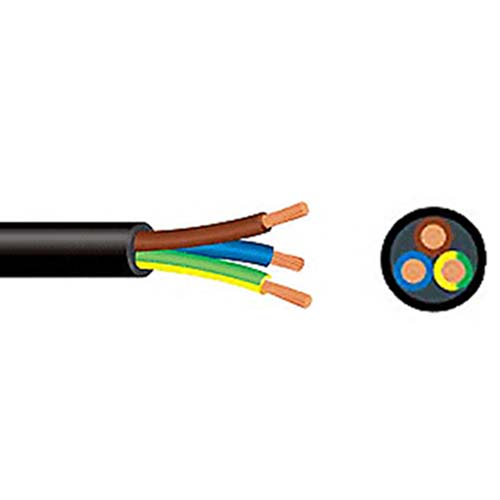

Tradeprice Cabtyre Cable 1.5mm x 3 Core | 5m to 100m - Black
SKU:
PPCAB15305B
Adding product to your cart
Recommended and/or Required Products
Product Features
- High conductivity bunched plain flexible copper conductors
- Cores are twisted together and sheathed with a flexible grade PVC
- Normal duty
- Primarily used for extension cords
Technical Specifications
| Colour: |
Black |
| Material: |
PVC |
| Cores: |
3 Core |
| Conductor Resistance @ 20°C (Max.): |
13.3 ohm/km |
| Voltage: |
300-500V |
| Voltage Drop: |
1Ø: 32 mV/A/m / 3Ø : 27 Mv/A/m |
| Rated Current: |
1Ø: 16A / 3Ø : 16A |
| Length: |
Available in 5 to 100m Lengths |
| Diameter: |
1.5mm² |
| Assumed Ambient Air Temperature: |
30°C |
| Assumed Conductor Temperature (Max.): |
70°C |
