Tradeprice Flat Twin + E Cable 2.5mm x 2 Core | 5m to 100m - White
SKU: PPFTE2505Recommended and/or Required Products
Product Information

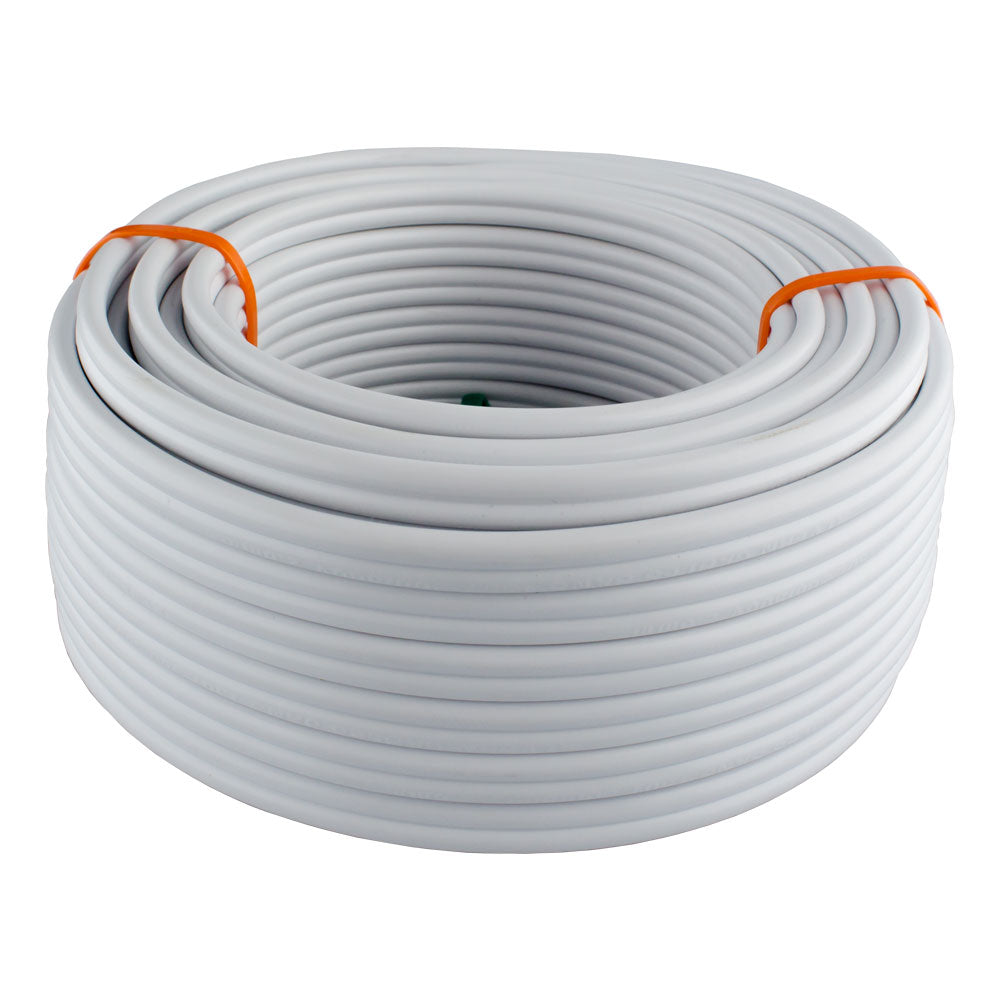

Prepacked length of Flat Twin & Earth cable
Product Features

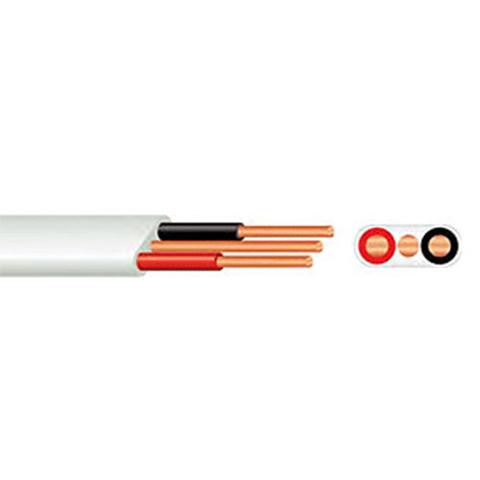

- Flat twin PVC insulated flexible cable is used for low voltage 300/500V application.
- Primarily used for plug points
Technical Specifications
| Colour: | White |
| Material: | PVC |
| Cores: | 2 Core |
| Phase Resistance: | 7.4 ohm/km |
| Earth Resistance: | 12.1 ohm/km |
| Voltage: | 300 - 500V |
| Voltage Drop: | 23 Mv/A/m |
| Length: | Available in 5 to 100m Lengths |
| Diameter: | 2.5mm² |
| Earth Conductor Size: | 1.5mm² |
| Assumed Ambient Air Temperature: | 30°C |
| Assumed Conductor Temperature (Max.): | 70°C |
